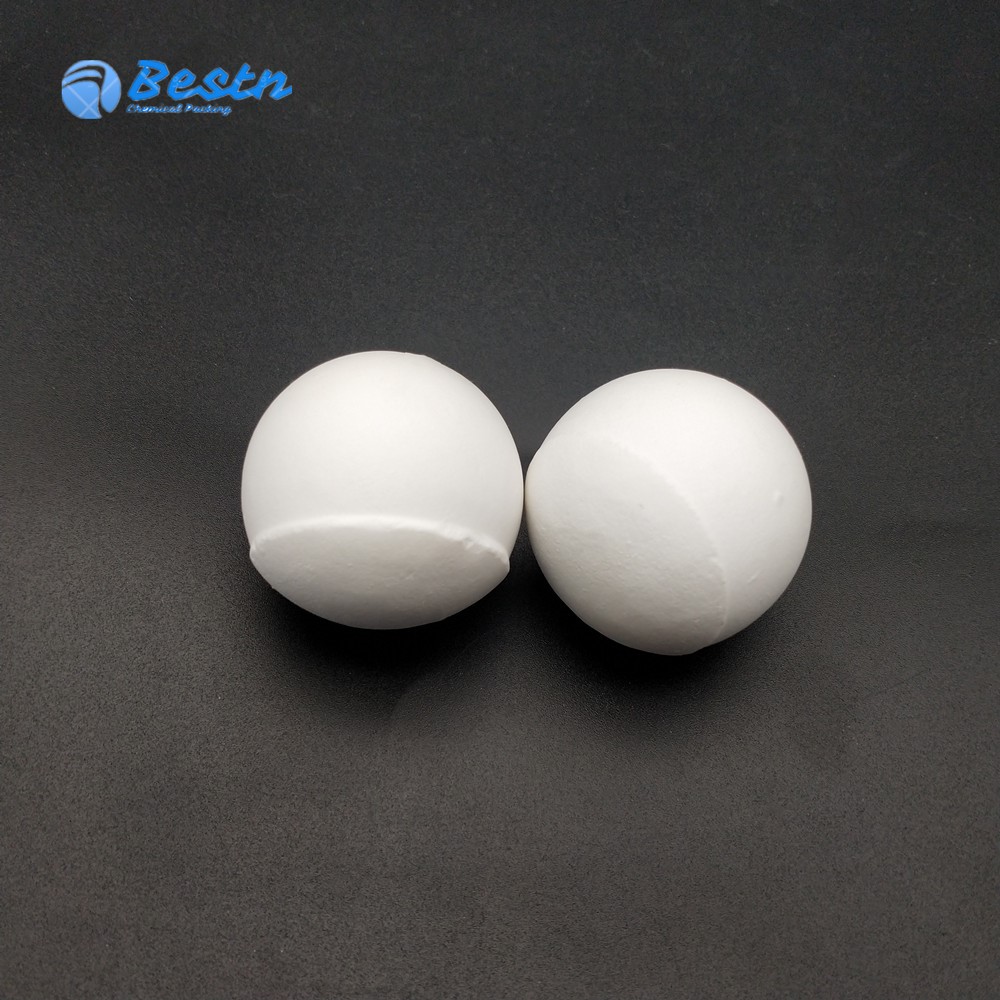

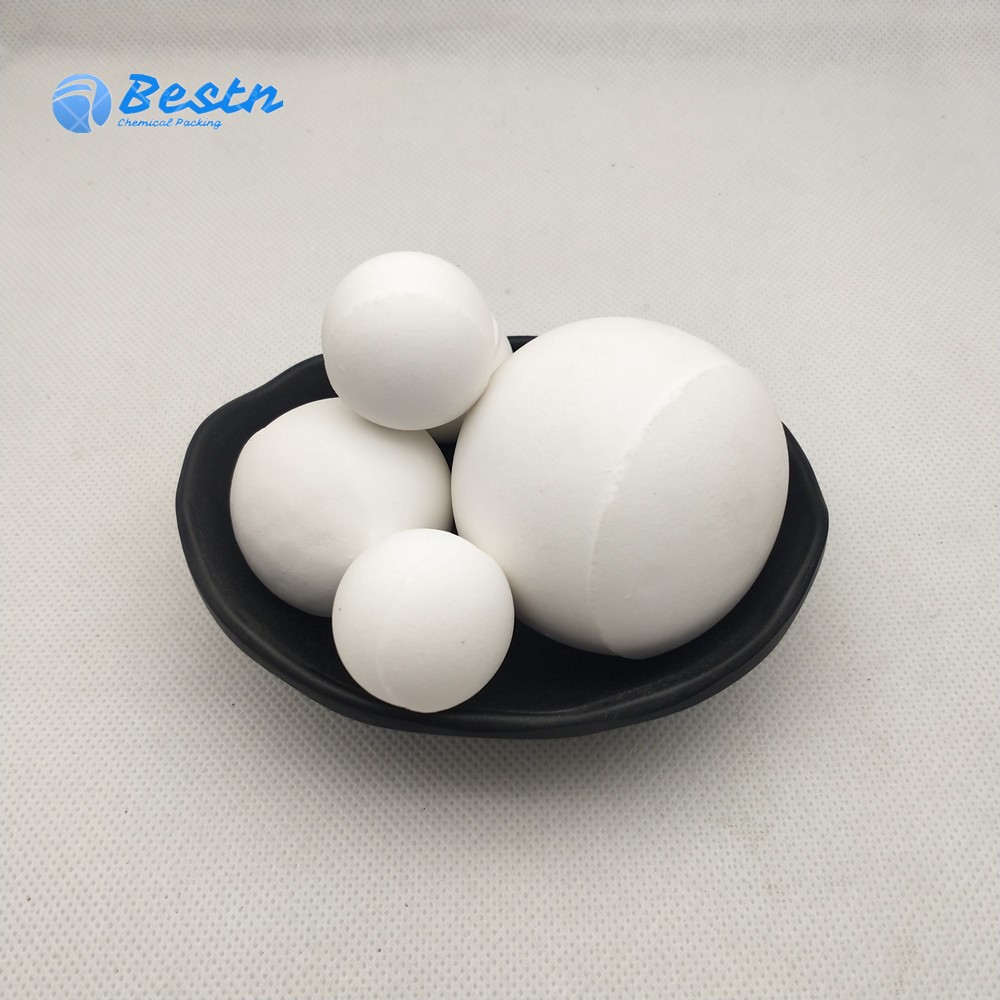

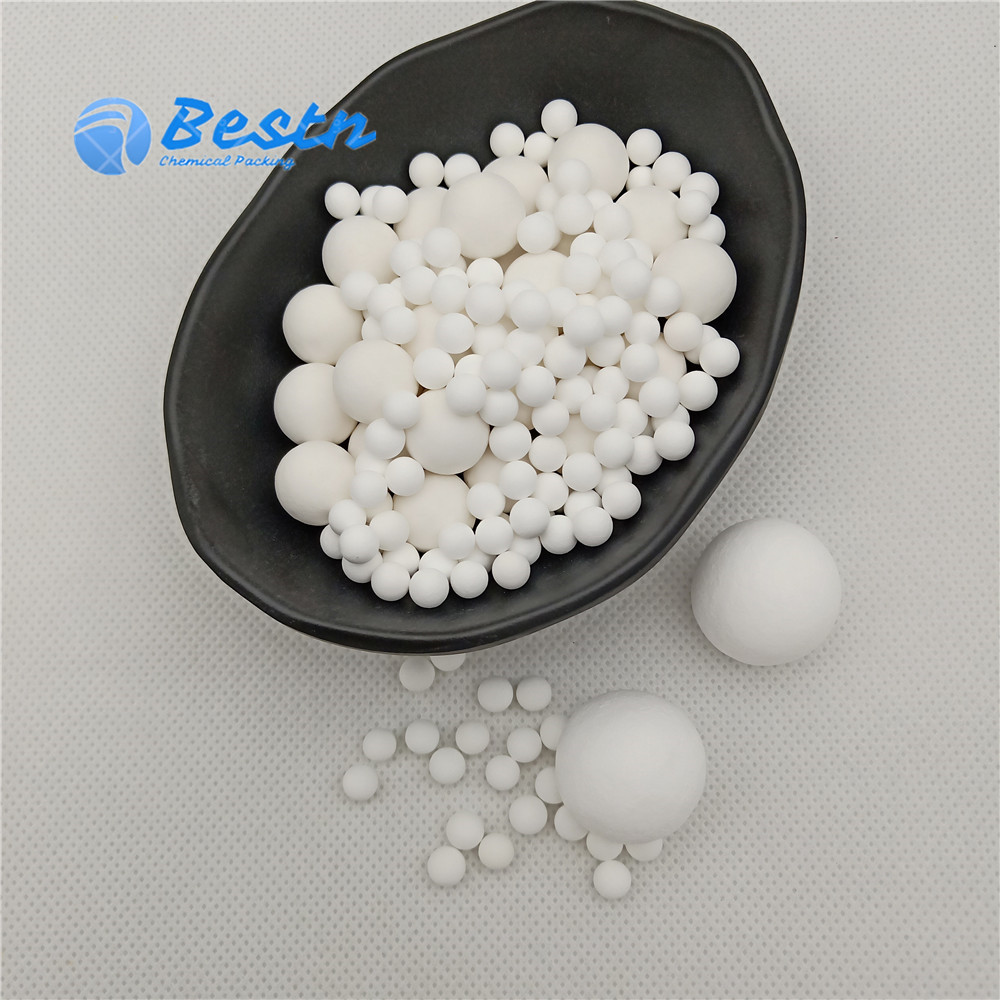

Grinding Ceramic ball
Model Number:BS-GCB
Place of Origin:Pingxiang,China
Keywords:high alumina grinding ball , 92% Al2O3 ball, grinding ball
Alumina grinding ball has been widely used in ball mills as abrasive media for ceramic raw materals and glaze materials in ceramic factors, cement factories, enamel factories and glasswork owing to the extraordinarily high density, high hardness, high wear resistance.
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
Alumina grinding ball has been widely used in ball mills as abrasive media for ceramic raw materals and glaze materials in ceramic factors, cement factories, enamel factories and glasswork owing to the extraordinarily high density, high hardness, high wear resistance. During the abrasive/grinding processes, ceramic aballs will not be broken, it will not comtaminate the materials to be grinded.
Application:
1)Grinding ceramic ball is one ideal ball mill grinding media, it can keep the purity and improve the stability of grinded materials.
2)The alumina grinding ball have been widely used in ball mills as abrasive media for ceramic raw materials and glaze materials in ceramic factories, cement factories, enamel factories and glasswork.
3)The main features are high density, high hardness and strength, high wear resistance, thermal stability, corrosion resistance and non-pollution etc.
4)During the abrasive/grinding processes, ceramic balls will not be broken, it will not contaminate the materials to be grinded.
5)Type: According to the content of aluminum oxide: 60-70%, 65-75%, 95%.
Typical Characteristics
Specification |
65Alumina Ball |
75Alumina Ball |
90Alumina Ball |
92Alumina Ball |
95Alumina Ball |
99Alumina Ball |
Al2O3(%) |
≥65 |
≥75 |
≥90 |
≥92 |
≥95 |
≥99 |
Fe2O3(%) |
≤0.5 |
≤0.5 |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.1 |
Moh’s Hardness |
8 |
8~9 |
9 |
9 |
9 |
9 |
Water Adsorption (%) |
≤0.05 |
≤0.05 |
≤0.02 |
≤0.02 |
≤0.02 |
≤0.01 |
Density (g/cm3) |
≥2.95 |
≥3.25 |
≥3.55 |
≥3.60 |
≥3.65 |
≥3.8 |
Crush Strength (MPa) |
≥1650 |
≥1700 |
≥1900 |
≥2000 |
≥2250 |
≥2500 |
Abrasion Loss (%) |
≤0.03 |
≤0.02 |
≤0.01 |
≤0.01 |
≤0.01 |
≤0.01 |
Appearance Demand
|
High Alumina Grinding Balls |
Medium Alumina Grinding Balls |
Carbonized Alumina Grinding Balls |
Color |
White |
White |
Ash-black |
Crack |
Not Permission |
Not Permission |
Not Permission |
Impurity |
Not Permission |
Not Permission |
Not Permission |
Foam hole |
Above ф1mm not permission, size in ф0.5mm permit 3 balls |
||
Flaw |
Max. size in ф0.3mm permit 3 balls |
Advantage
(1) High wear-resistance:
The alumina balls’ wear-resistance is higher than the common alumina balls’. When it is working, the ball won’t pollute the grinding materials, so it can keep the purity and improve the stability of grinded materials especially the ceramic glaze.
(2) High density
High density, high hardness and the high grinding characters save the grinding time, enlarge the smashing room. So it can improve the grinding efficiency.

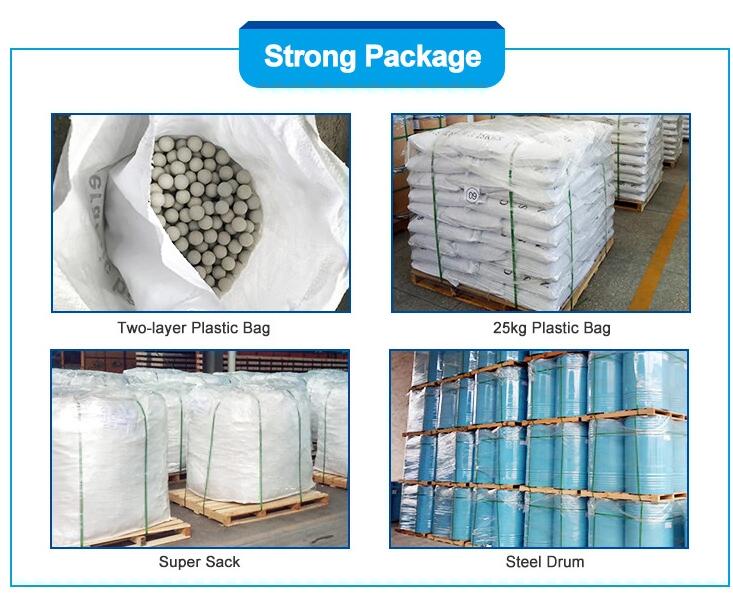

Package
