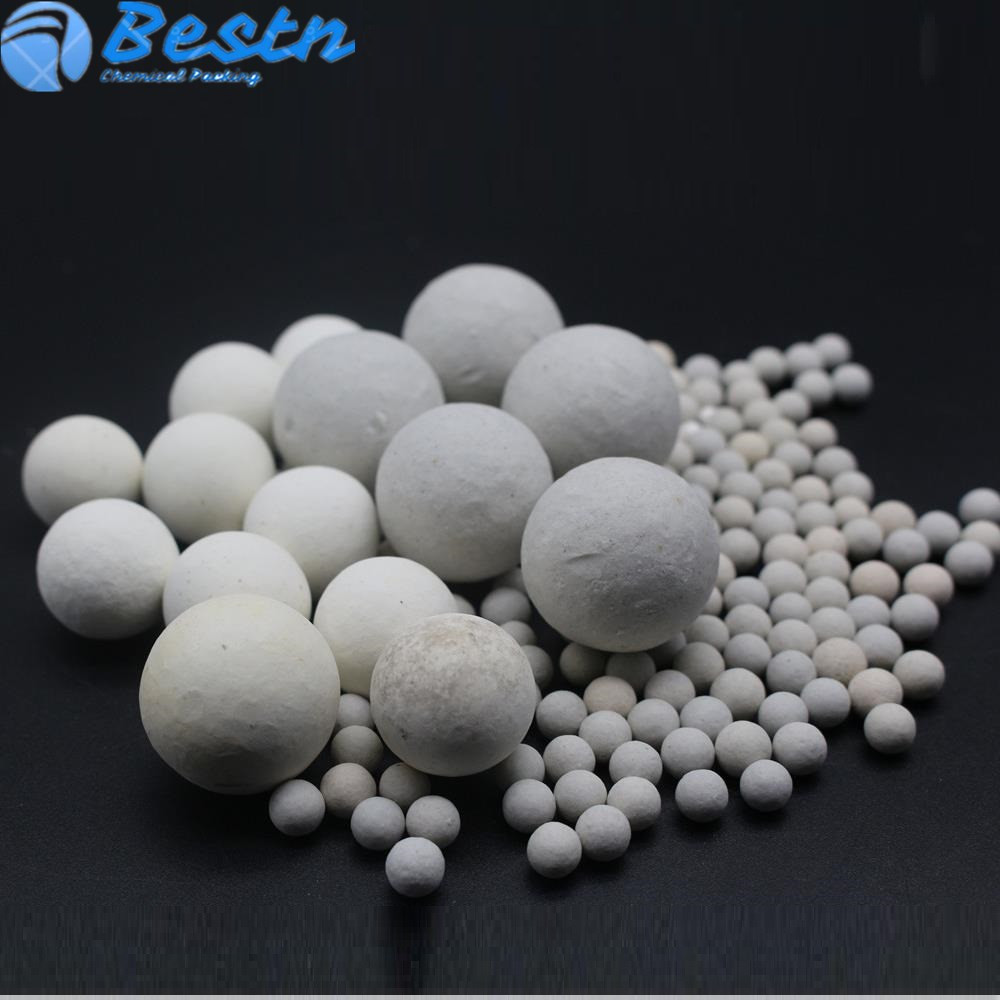

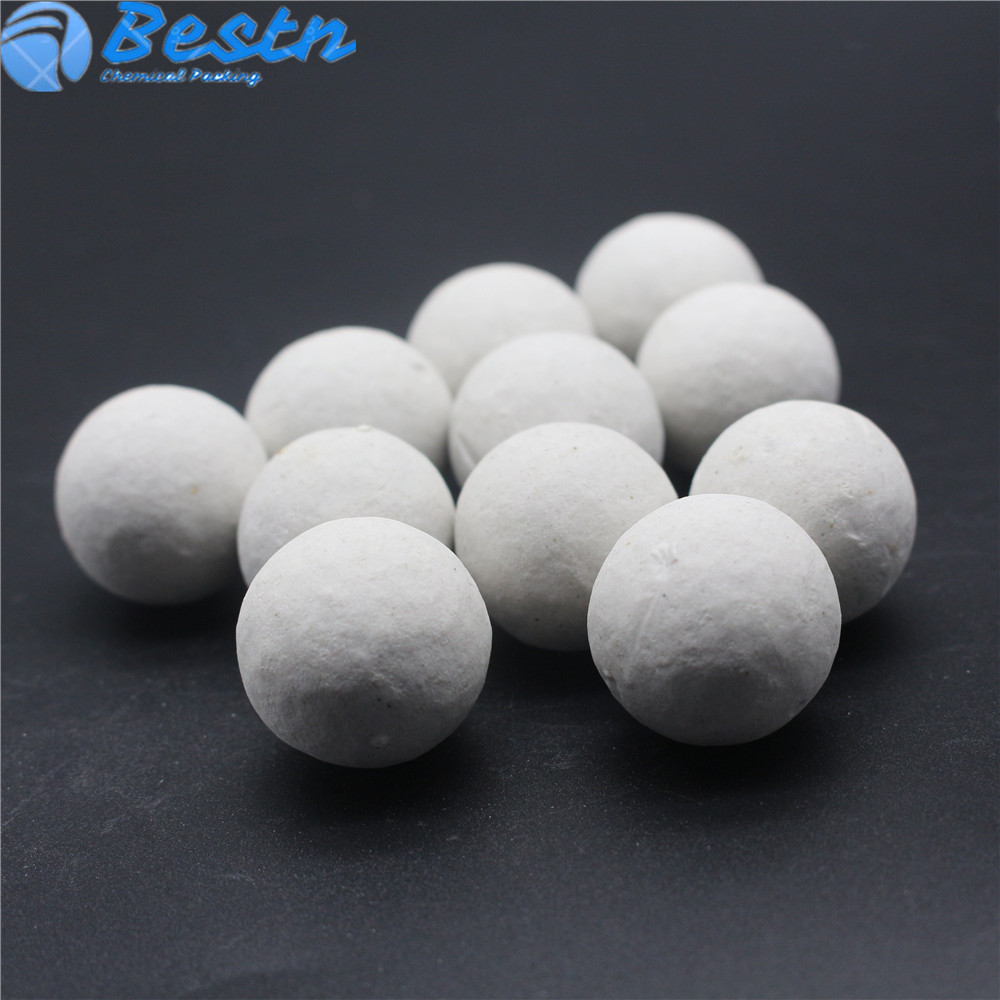

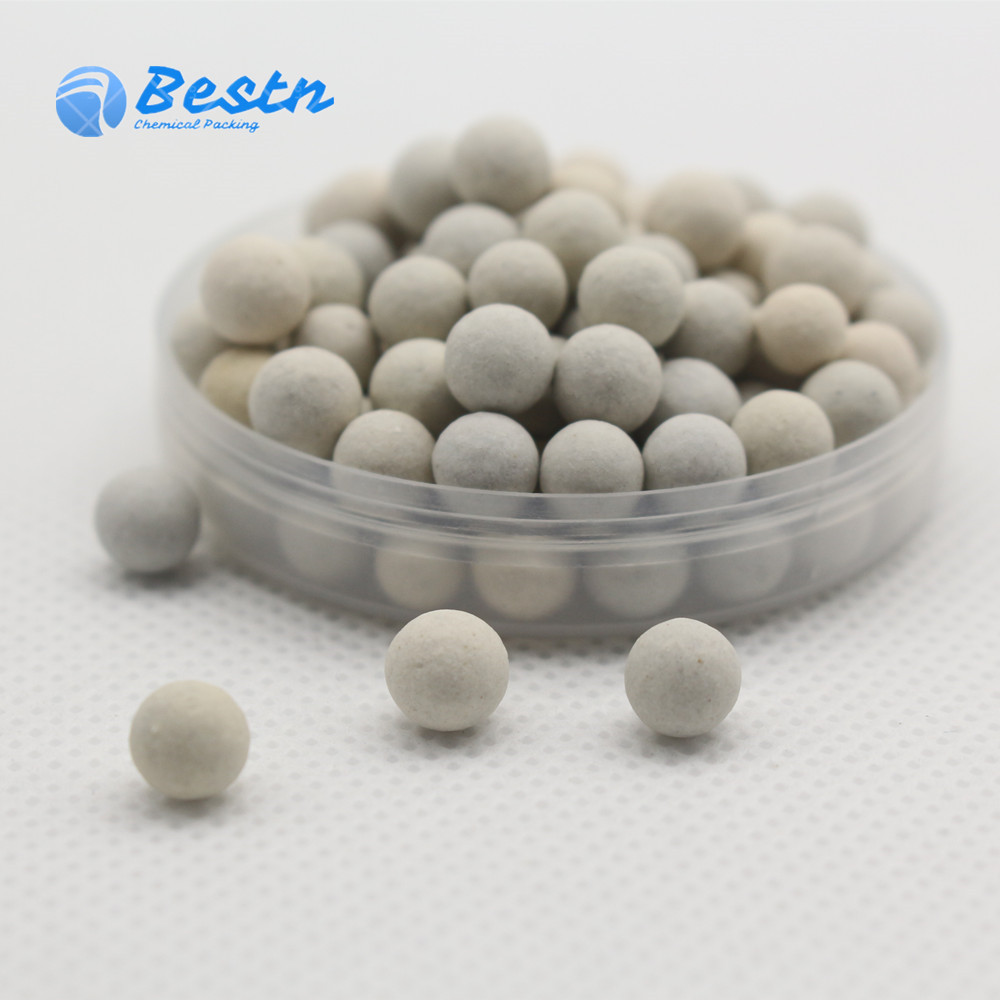

Inert ceramic ball
Model Number:BS-ICB
Place of Origin:PINGXIANG,CHINA
Keywords:Inert ceramic ball, support media ball, catalyst carrier support ceramic balls.
Be mainly used in the petroleum, chemical industry, fertilizers,natural gas, environmental protection and other industries. It plays a role of supporting and compacting the packing of the tower.
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
Inert Ceramic ball are the most widely used support media in the world because of their excellent consistence and reliability. Products to these specifications are manufactured from very high quality chemical-porcelain clay materials, which has quite excellent stability, high mechanical strength and resistance to thermal shock, This makes them all ideal choice for support of all types of catalyst.
Chemical compostion
Al2O3+SiO2
Al2O3
Fe2O3
MgO
K2O+Na2O +CaO
Other
> 92%
17-23%
<1%
<0.5%
<4%
<1%
Leach able Fe2O3 is less than 0.1%
Physical properties
Item |
Value |
Water absorption (%) |
<0.5 |
Bulk density (g/cm3) |
1.35-1.4 |
Specific gravity (g/cm3) |
2.3-2.4 |
Free volume (%) |
40 |
Operation temp.(max) (℃) |
1100 |
Moh’s hardness (scale) |
>6.5 |
Acid resistance (%) |
>99.6 |
Alkali resistance (%) |
>85 |
Size available & Crush strength
Size
Crush strength
Kg/particle
KN/particle
1/8 inch (3mm)
>35
>0.35
1/4 inch (6mm)
>60
>0.60
3/8 inch (10mm)
>85
>0.85
1/2 inch (13mm)
>185
>1.85
3/4 inch (19mm)
>487
>4.87
1 inch (25mm)
>850
>8.5
1-1/2 inch (38mm)
>1200
>12
2 inch (50mm)
>5600
>56
