Liquid Surface Covering Ball

Model Number：BS-LSCB

Place of Origin：Pingxiang,China

Keywords： Liquid Surface Covering Ball, coverring ball,floating cover ball

Covering ball used for acid-base tank which can prevent spillover and volatilizing of acid-base gas and reduce environmental pollution and save acid-base material.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 jenny@bestpacking.cn

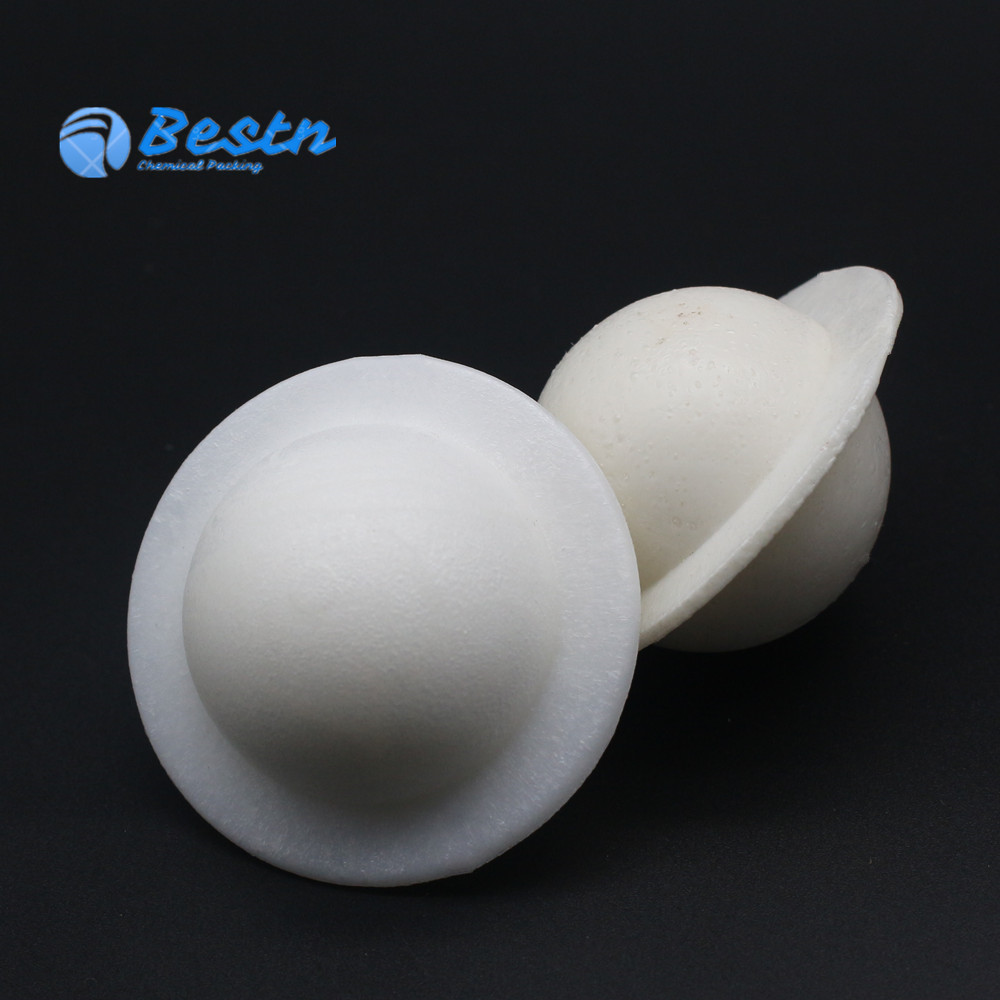

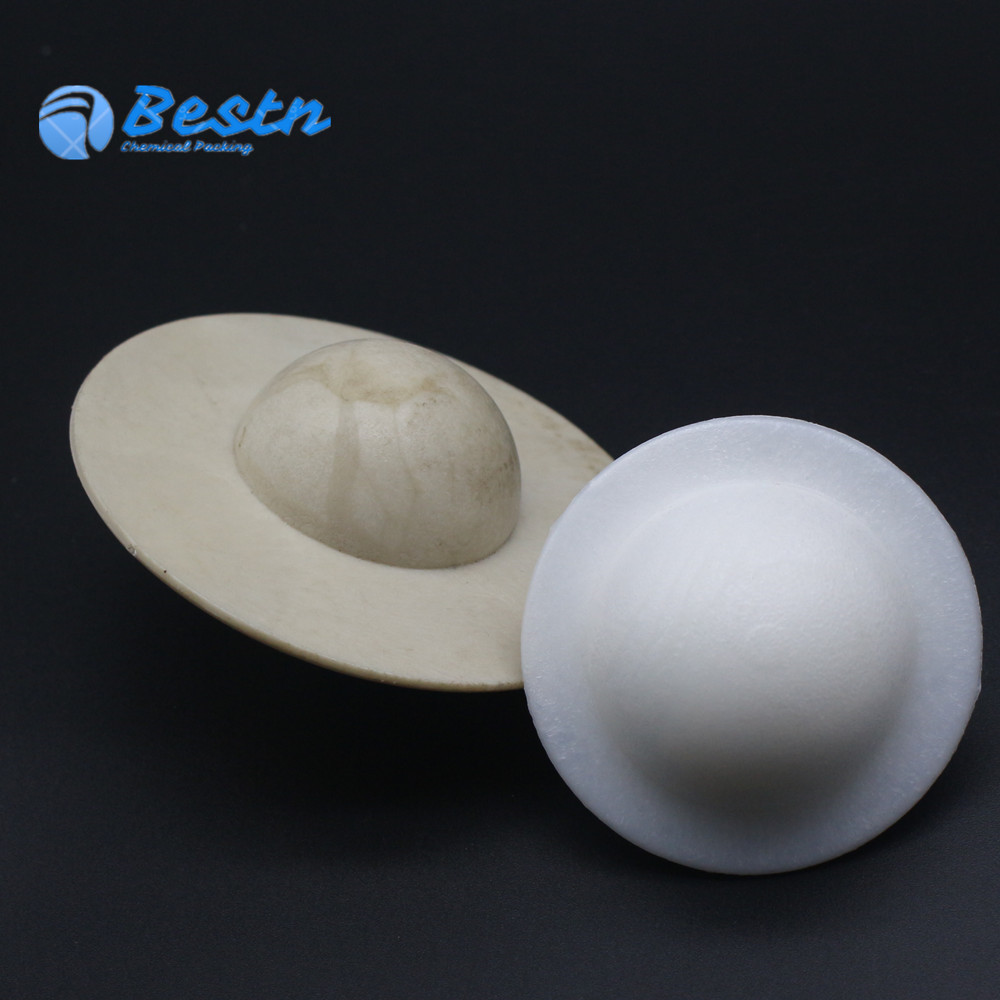

The Covering Ball is designed based on the Hollow Ball. Compared with the Hollow Ball, the Covering Ball has a rim around its surface. And the application temperature in media range from 60ºC to 150ºC.

According to using quantity of surface are, mixing covering ball into liquid , putting covering ball in natural order, overlaying liquid surface , its edge sealed by packing material.

Usage
Covering ball is mainly used for covering role of liquid upper surface .Besides, Covering ball used for acid-base tank which can prevent spillover and volatilizing of acid-base gas and reduce environmental pollution and save acid-base material;used in demineralized water ,which isolate water from air and reduce the effect of CO2,O2,dust and impurity on demineralized water and ensure water quality.

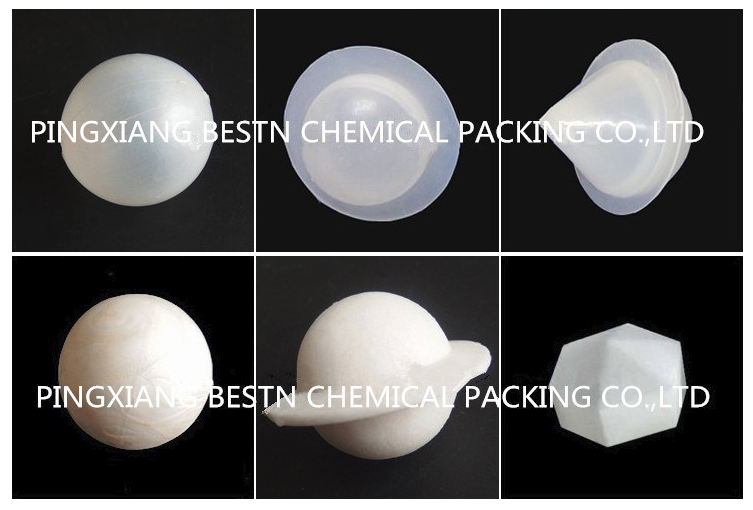

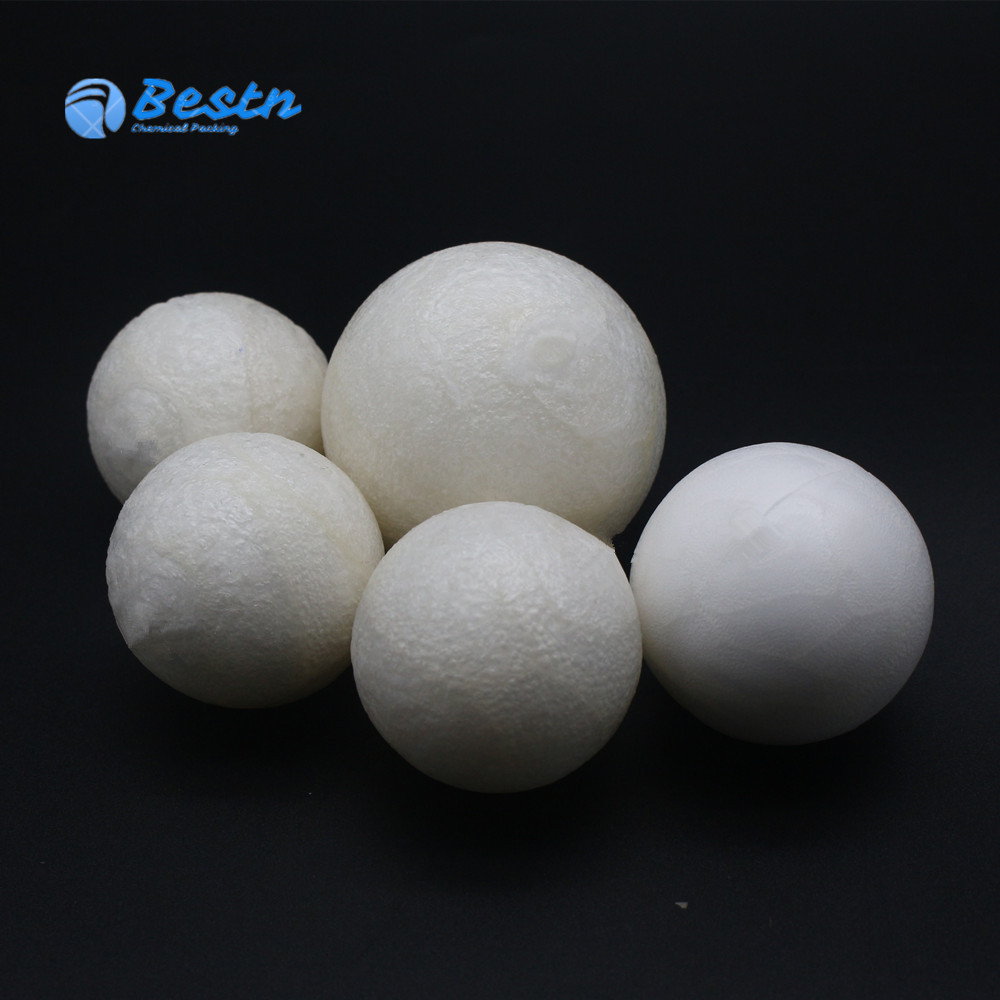

Liquid surface covered by the ball from polypropylene (PP) injection is made, there are two models of this product: I type as a foam float, II-type solid core of foam ball (energy-saving ball).

Item	Dia(mm)	Operating Temp. ( ºC)	Compressive strength(Mpa)	Number (n/m3)	Void Volume %	Covering Rate %	PH range
Solid covering ball	40	≤120	≤0.4	720	9.5	91	1-4
Solid covering ball	50	≤120	≤0.4	500	9.5	91	1-4
Solid covering ball With broader	40	≤120	≤0.4	666	9.3	97	1-4
Solid covering ball With broader	80	≤120	≤0.36	232	9.5	99	1-4
Liquid surface hollow covering ball with broader	25	≤120	≤0.4	1560	9.5	98	1-4
	40	≤120	≤0.4	666	9.3	97	1-4
	80	≤120	≤0.36	232	9.5	99	1-4
Liquid surface hollow covering ball	40	≤120	≤0.4	720	9.5	91	1-4
Hexagonal covering ball	50	≤120	≤0.4	500	9.5	91	1-4
Application	Petroleum and chemical industries, alkali chloride industries,gas industries and environmental protection industries
Material	PE, PP, PVC, PVDF, CPVC ,Rpp etc.
