Plastic Structured Packing

Model Number：BS-PSP

Place of Origin：Pingxiang,China

Keywords：Plastic Structured Packing,Plastic Perforated Plate Corrugated Packing, PP 125y Packing

Its performance has a ventilation rate, low resistance and large elasticity of operation, large contact area, etc. Especially in the atmospheric pressure and subtraction operation is more significant.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 jenny@bestpacking.cn

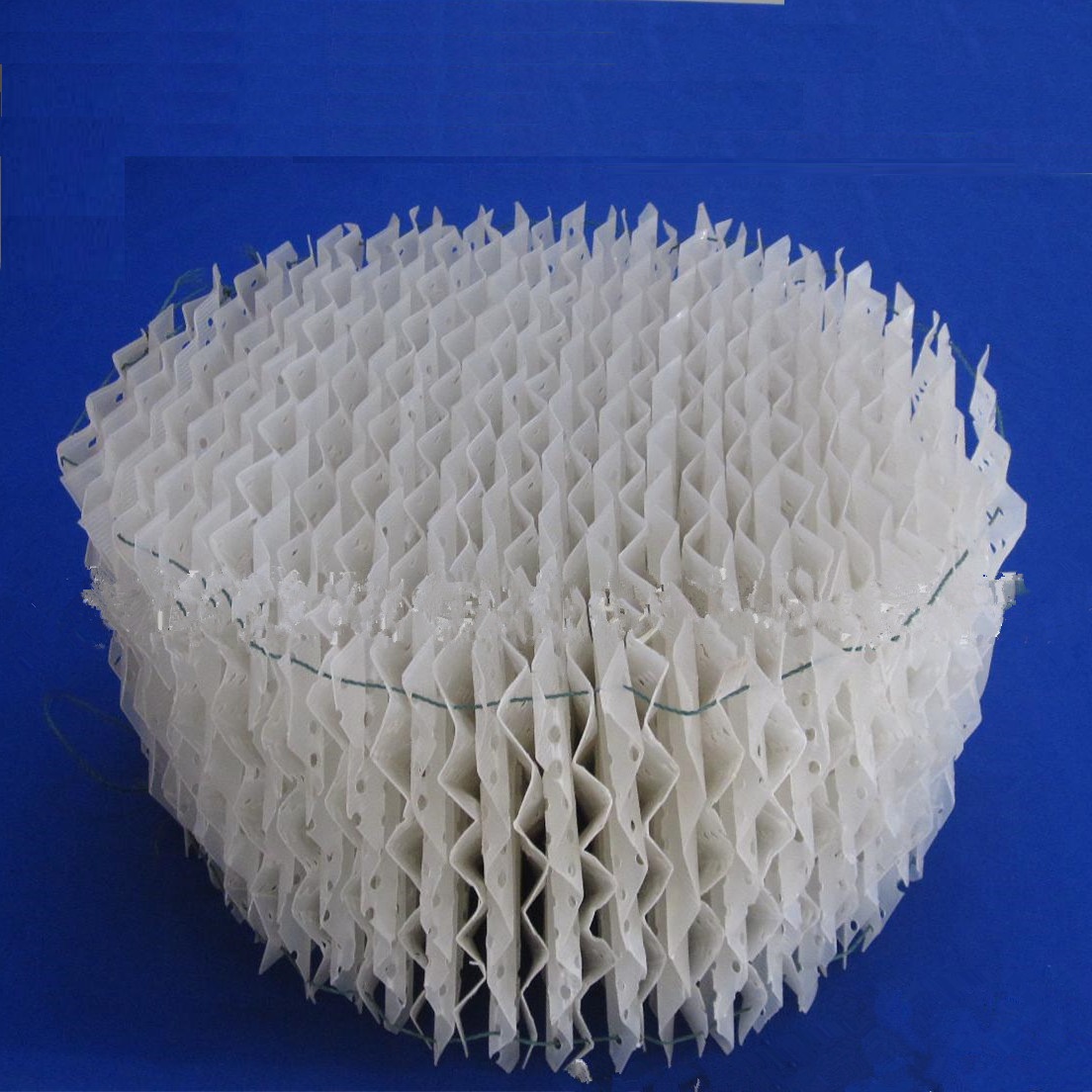

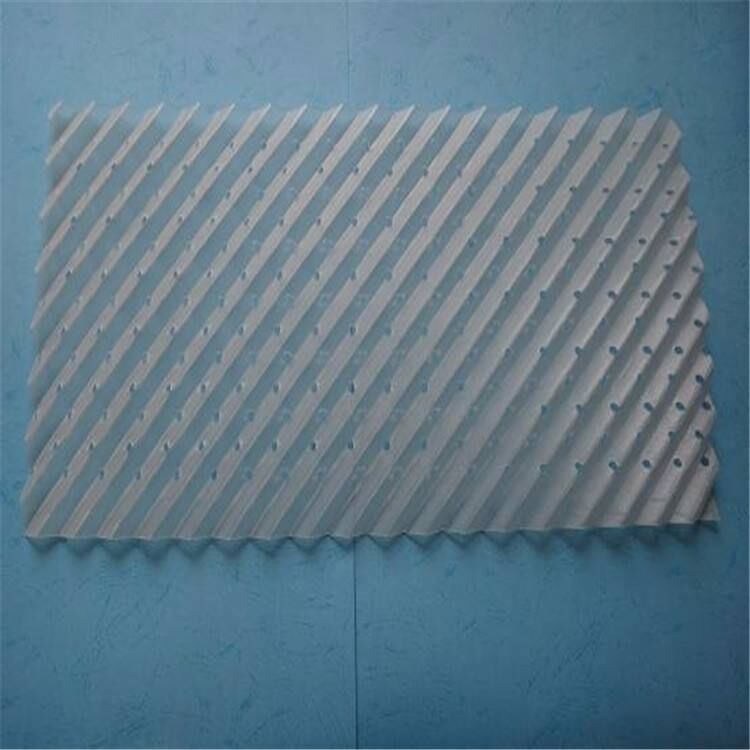

Plastic Perforated Plate Corrugated Packing is made of improved polypropylene and the other material, and other material, and its performance is similar to the metallic perforated corrugated packing with same dimension. Plastic plate corrugated packing has the advantage of light weight, mass transfer rate, low pressure drop, large specific surface areas, easy change.

Application
mainly used for sewage treatment, CO2 removal, desulfurization, water tower, gas, iron and steel desulfurization, coking, chemical industry, chemical fertilizer in all kinds of ammonia washing tower tower filling material.

Features
Its performance has a ventilation rate, low resistance and large elasticity of operation, large contact area, etc. Especially in the atmospheric pressure and subtraction operation is more significant.

Product specifications

Type	NT (m-1)	Surface area (m2/m3)	Void ratio (%)	Bulk density (kg/m3)	Liquid load (m3/m2.hn)	Max. F factor m/s (Kg/m3)0.5
BS-125Y	1-2	125	0.985	37.5	0.2-100	3
BS-250Y	2-2.5	250	0.97	75	0.2-100	2.6
BS-350Y	3.5-4	350	0.95	105	0.2-100	2.0
BS-500Y	4-4.5	500	0.93	150	0.2-100	1.8
BS-125X	0.8-0.9	125	0.985	37.5	0.2-100	3.5
BS-250X	1.5-2	250	0.97	75	0.2-100	2.8
BS-350X	2.3-2.8	350	0.95	105	0.2-100	2.2
BS-500X	2.8-3.2	500	0.93	150	0.2-100	2.0
