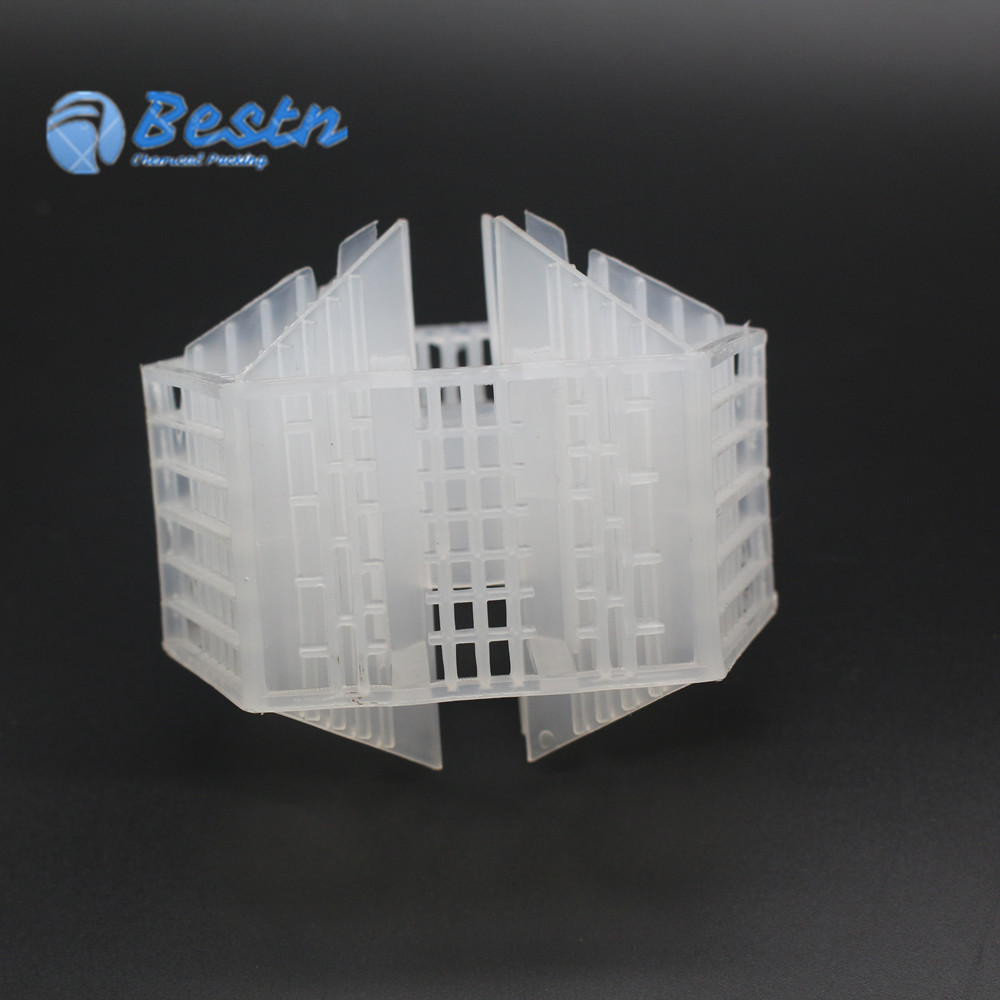

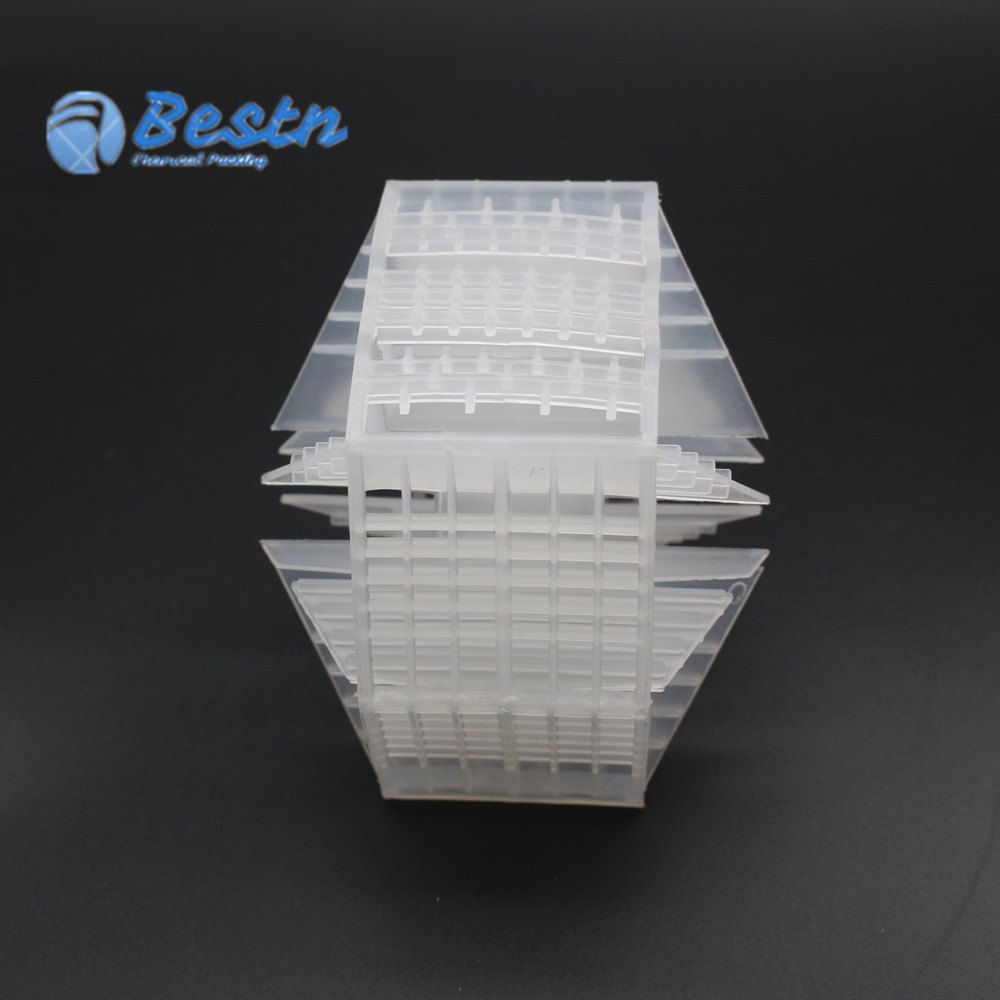

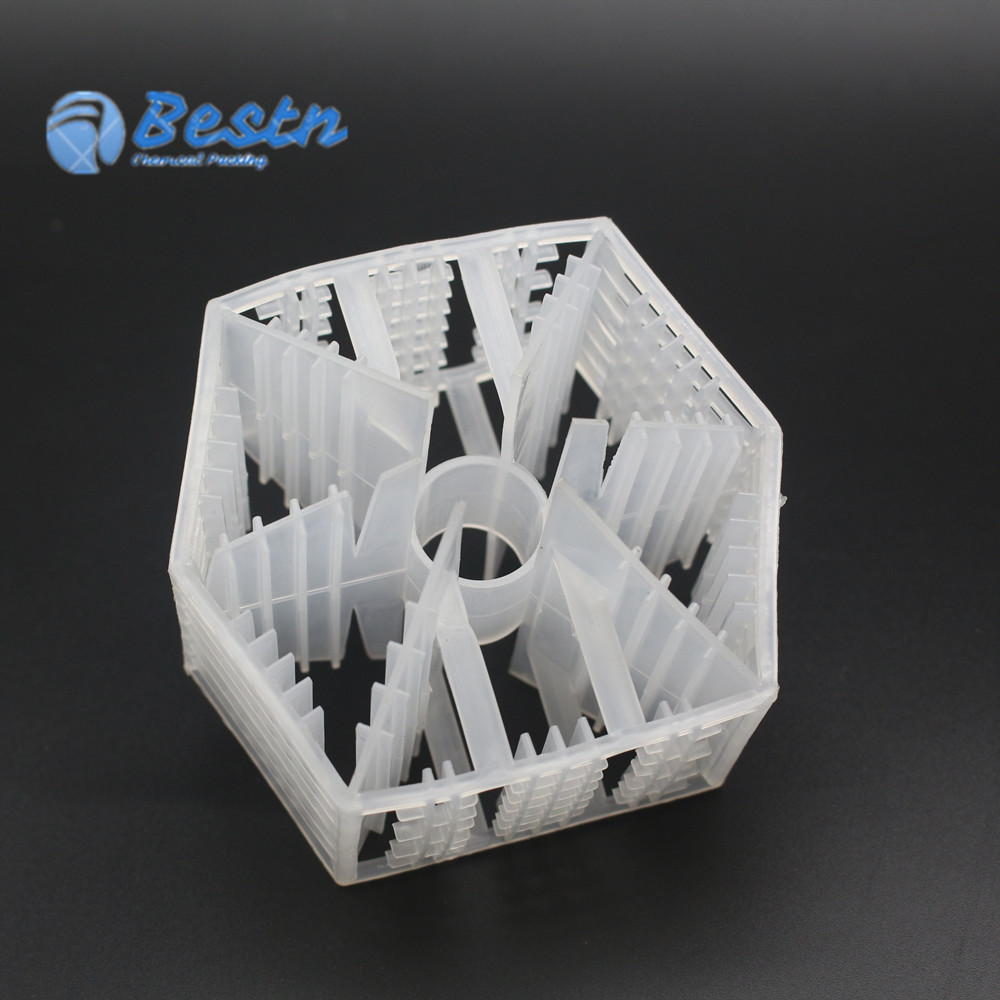

Plasic Lan Pack

Model Number：BS-LP

Place of Origin：Pingxiang,China

Keywords： plastic Lan Pack, Lan pack, PP lanpac, Lanpac tower packing media

Lanpac tower packing media is uniquely engineered to provide maximum surface contact between exhaust gases and scrubbing liquid by facilitating continuous formation of droplets throughout the packed media bed.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 jenny@bestpacking.cn

Innovatively Geometric design , axisymmetric distribution, the horizontal stripes & vertical bar cross distribution is Lanpac’s outstanding feature. Lanpac tower packing media is uniquely engineered to provide maximum surface contact between exhaust gases and scrubbing liquid by facilitating continuous formation of droplets throughout the packed media bed.

Specification：

Size

(inch)

Surface area m2/m3

Void Fraction

Numbers/m3

Bulk weight

Dry packing factor M-1

3.5”

144

92.5 %

1765

4.2 lb/ft3

67 kg/m3

46/m

2.3”

222

89 %

7060

6.2 lb/ft3

99 kg/m3

69/m

Above spec is base on PP material.

Physical & chemical properties of plastic material:

Property /Material	PE	PP	RPP	PVC	CPVC	PVDF
Density g/cm3	0.94-0.96	0.89-0.91	0.93-0.94	1.32-1.44	1.50-1.54	1.75-1.78
Application temperature	90	>100	>120	>60	>90	>150
Chemical corrosion resistance	good	good	good	good	good	good
Compression Strength	90	>100	>120	>60	>90	>150
