1.Cooling Tower Film Fill Media Introduction

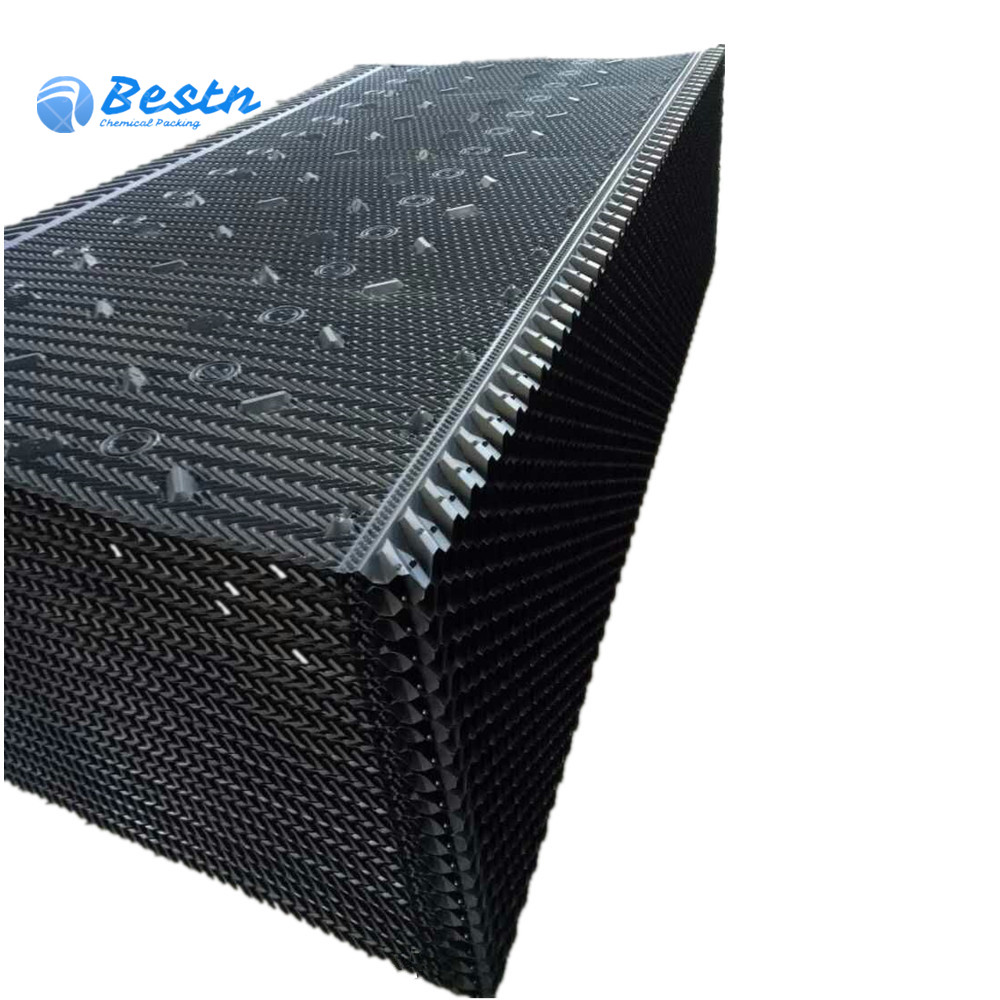

Cross Fluted Film Fill Media improve water distribution by splitting the water stream as it descendsthrough the fill pack. The CF1900 MA splits the water stream 8 times in a 12” (305 mm) vertical path.High thermal performance (high KaV/L) and low pressure drop are simultaneously achieved throughengineered flute/microstructure design and the highest manufacturing standards.

PVC film fill with a 19mm pitch. The larger sheet spacing is suitable for water quality slightly less than ideal.

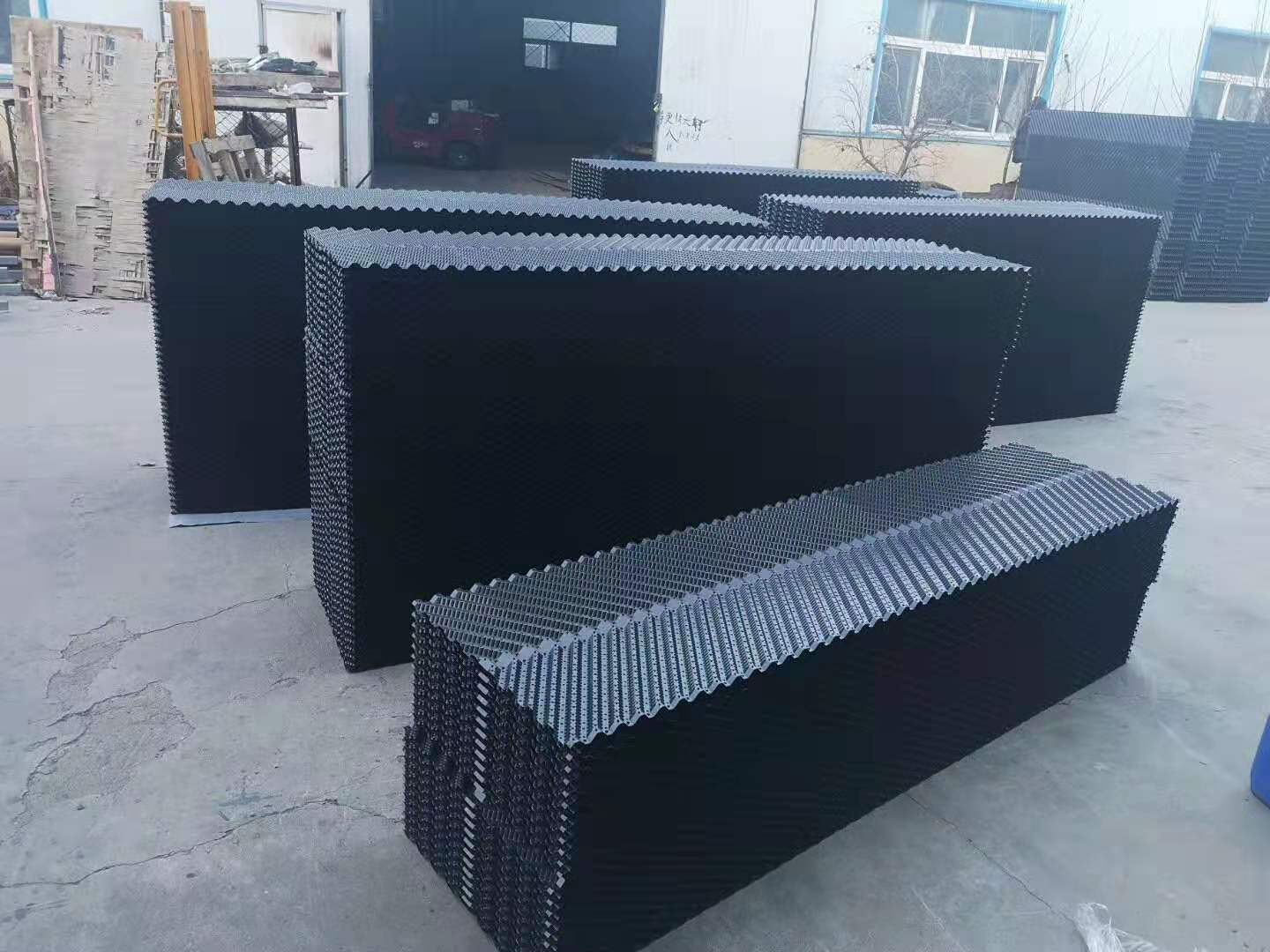

CF1900MA is used in counter flow cooling tower applications and is available in glued blocks 305mm wide x 305mm high, and either 1830mm or 2440mm long.

CF1900MA can also be cut to length to your specific requirements, or supplied as loose sheets.

2. Cooling Tower Film Fill Media Features

Bevel tips promote drainage at fill pack interfaces.
Available with patented Mechanical Assembly (MA) technology for glue-free packs that can be assembled on site.
Learn more about Mechanical Assembly
Engineered microstructure for improved water distribution and thermal mixing.
High thermal performance.
Proprietary edge trim that directs water to both sides of sheet.
Material meets Cooling Technology Institute (CTI) Standard 136.
Available in PVC and CPVC.

3. Cooling Tower Film Fill Media Application

The CF1900 is designed for field-erected or package counter flow cooling towers and can be used in cross flow towers. This fill is used in power, refining, chemical, steel, and food processing applications where water quality is average to good.

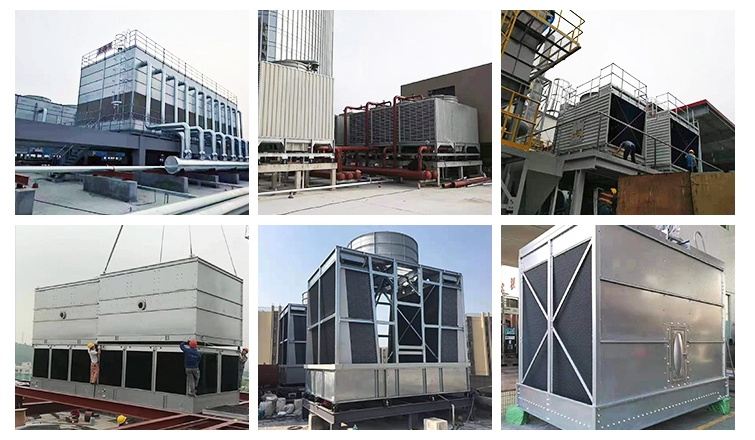

Applications of PVC cooling tower filler / plastic sheet for cooling tower fill

It is widely used in different types of large, medium, small, cooling tower.
