Ceramic Porous Ball

Model Number：BS-CPB

Place of Origin：PINGXIANG,CHINA

Keywords： Ceramic Porous Ball, open hole ceramic ball,ceramic ball

Ceramic Porous Ball has great mechanical strength,good chemical and thermal stability.And also has larger surface area and free void which directly increased the dispersion and flux of the fluids and reduce the resistance.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 jenny@bestpacking.cn

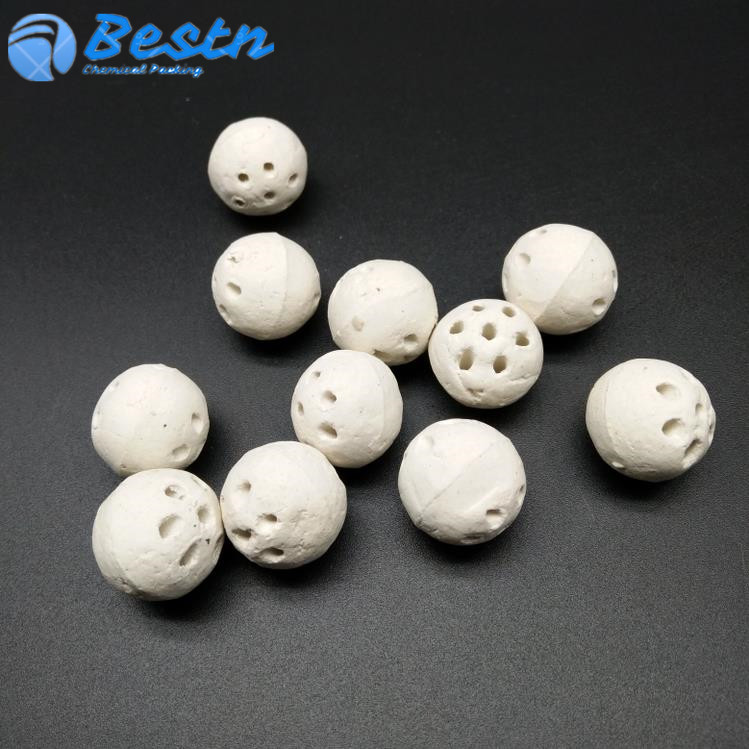

Ceramic Porous Ball developed on the basis of inert ceramic ball, owns one pore or several pores.

Compared with inert ceramic ball, it has great mechanical strength,good chemical and thermal stability.And also has larger surface area and free void which directly increased the dispersion and flux of the fluids and reduce the resistance.

Widely used in oil refinery, chemical, fertilizer, natural gas and environment protection industries.Instead of inert ceramic ball works as catalyst carrier, and praised by many users.

Physical Property:

Type		Feldspar	Feldspar-Mullite	Mullite	Mullite-Corundum	Corundum
Physical		Feldspar	Feldspar-Mullite	Mullite	Mullite-Corundum	Corundum
Chemical Composition %	Al2O3	20-30	30-45	45-70	70-90	≥90
	Al2O3+SiO2	≥90
	Fe2O3	≤1
Water Adsorption（%）		≤5
Acid Resistance(%）		≥98
Alkali Resistance（%）		≥80	≥82	≥85	≥90	≥95
Operation Temp.（℃）		≥1300	≥1400	≥1500	≥1600	≥1700
Crush Strength （N/Particle）	Φ3	≥400	≥420	≥440	≥480	≥500
	Φ6	≥480	≥520	≥600	≥620	≥650
	Φ8	≥600	≥700	≥800	≥900	≥1000
	Φ10	≥1000	≥1100	≥1300	≥1500	≥1800
	Φ13	≥1500	≥1600	≥1800	≥2300	≥2600
	Φ16	≥1800	≥2000	≥2300	≥2800	≥3200
	Φ20	≥2500	≥2800	≥3200	≥3600	≥4000
	Φ25	≥3000	≥3200	≥3500	≥4000	≥4500
	Φ30	≥4000	≥4500	≥5000	≥5500	≥6000
	Φ38	≥6000	≥6500	≥7000	≥8500	≥10000
	Φ50	≥8000	≥8500	≥9000	≥10000	≥12000
	Φ75	≥10000	≥11000	≥12000	≥14000	≥15000
Bulk Density（kg/m3）		1100-1200	1200-1300	1300-1400	1400-1550	≥1550
Notes:The value for bulk density is theory item,only for reference, not the final value.

Dimension

Diameter（Φ）	6	8	10	13	16	20	25	30	38	50	60	75
Diameter Tolerance（mm）	±1.0			±1.5				±2.0			±3.0
Pore Diameter（mm）	‘2-3			‘2-3				’5-8			‘8-10
