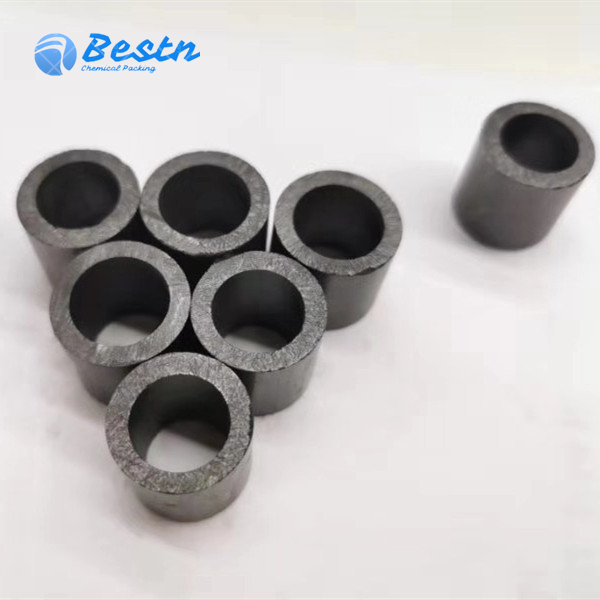

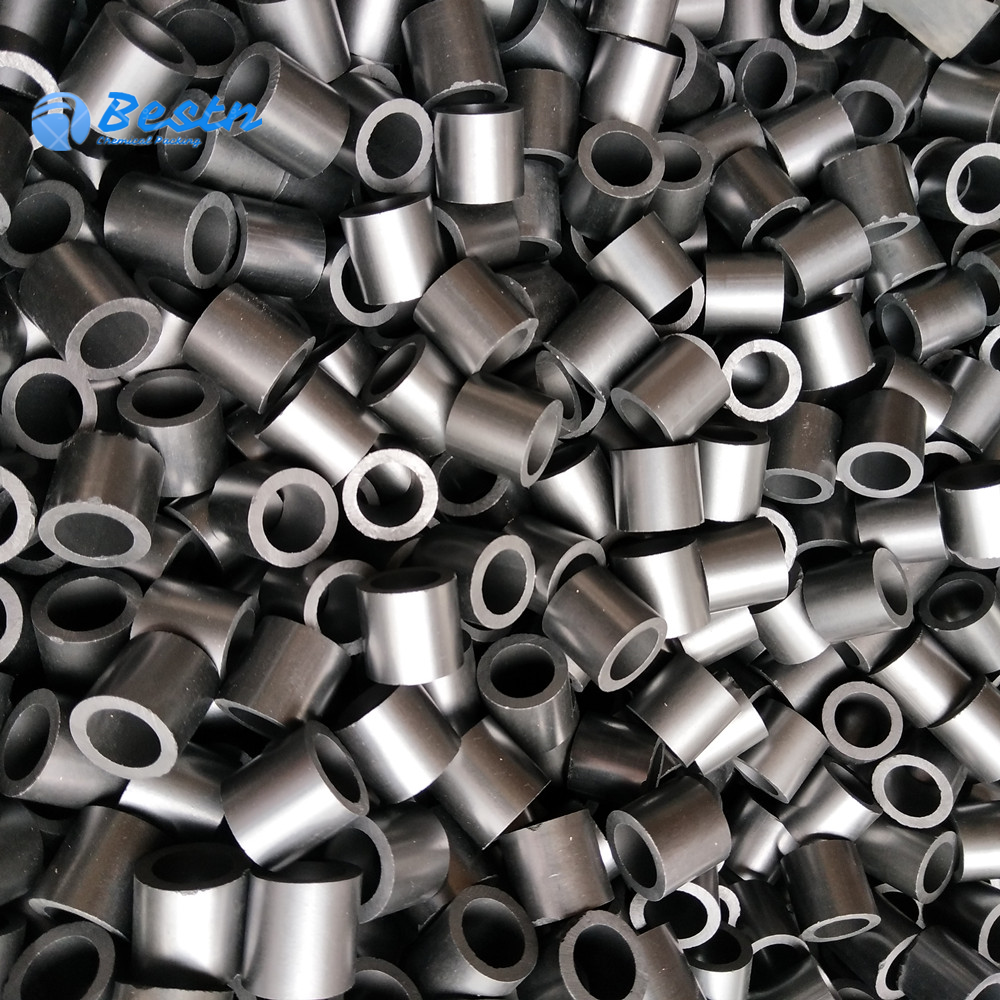

Carbon (Graphite) Rasching Ring
Model Number:BS-CS
Place of Origin:Pingxiang,china
Keywords:Carbon raschig ring ,Graphite ring , carbon hollow ring
Carbon (Graphite) Rasching Ring is featured with strong resistance in HF, strong acid, or strong alkali Environment, where packings made of other material, such as ceramic, plastic, and metal, can easily be corroded.
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
Carbon (Graphite) Rasching Ring is featured with strong resistance in HF, strong acid, or strong alkali Environment, where packings made of other material, such as ceramic, plastic, and metal, can easily be corroded.
Advantages:
Carbon raschig ring has low coefficient of thermal expansion,strong resistance in HF, strong acid, and strong alkali environment and ight weight and high mechanical strength with no soluble bond.
Technical Parameter:
Item |
Data |
volume density,Kg/m3 |
≥1500 |
Compressive strength, Mpa |
≥79.5 |
Flexure strength , Mpa |
≥35 |
Thermal conductivity,W/m.k |
31.4-40.7 |
24.7×10-6(129℃) |
|
Heat Resistance ℃ |
400 |
Item No. |
Size D×H×δ mm |
Surface Area m2/m3 |
Volid space ε% m3/m3 |
Number quantity n/m3 |
Bulk weight kg/m3 |
Dry packing factor α/ε m-1 |
BSCR-13 |
13×13×2 |
329 |
0.684 |
320000 |
600-650 |
1028 |
BSCR-19 |
19×19×3 |
220 |
0.54 |
110500 |
600-650 |
914 |
BSCR-25 |
25×25×4 |
194 |
0.73 |
46150 |
600-650 |
565 |
BSCR-38 |
38×38×6 |
125 |
0.68 |
14000 |
600-650 |
406 |
BSCR-50 |
50×50×7 |
120 |
0.78 |
6000 |
500-550 |
252 |
BSCR-80 |
80×80×9 |
76 |
0.68 |
1400 |
650-700 |
243 |
Note:Above is normal size raschig rings , we can also OEM as customer requirement. |
