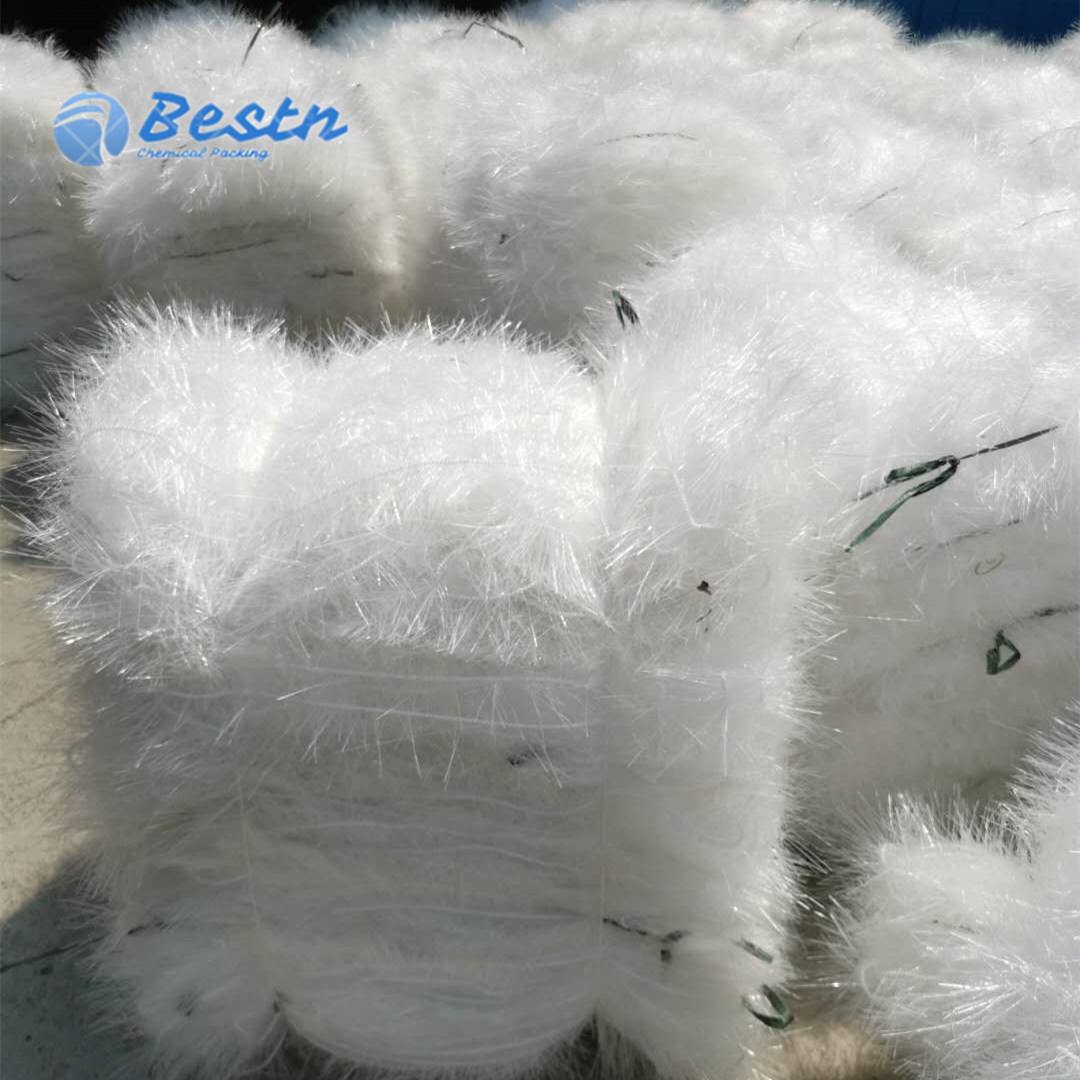

Elastic solid packing

Model Number:BS-ESP

Place of Origin:China

Keywords:Elastic solid packing, plastic elastic packing, elastic wire packing

•Strong bubble cutting ability •Large space volume utilization •Non blind-area •Easy to assemble, no need to use rope network to intercept and divide the pool body, just need fix the up and down grille. •High radiating performance, small resistance, good performance of water, gas distribution, easy long film.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 jenny@bestpacking.cn

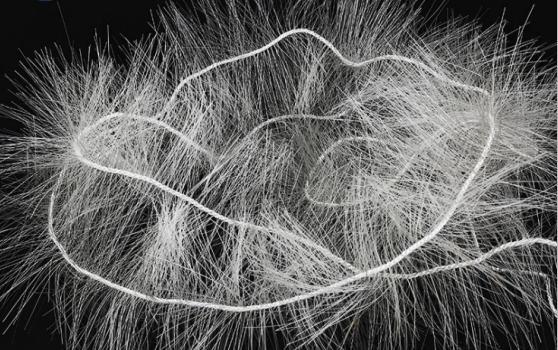

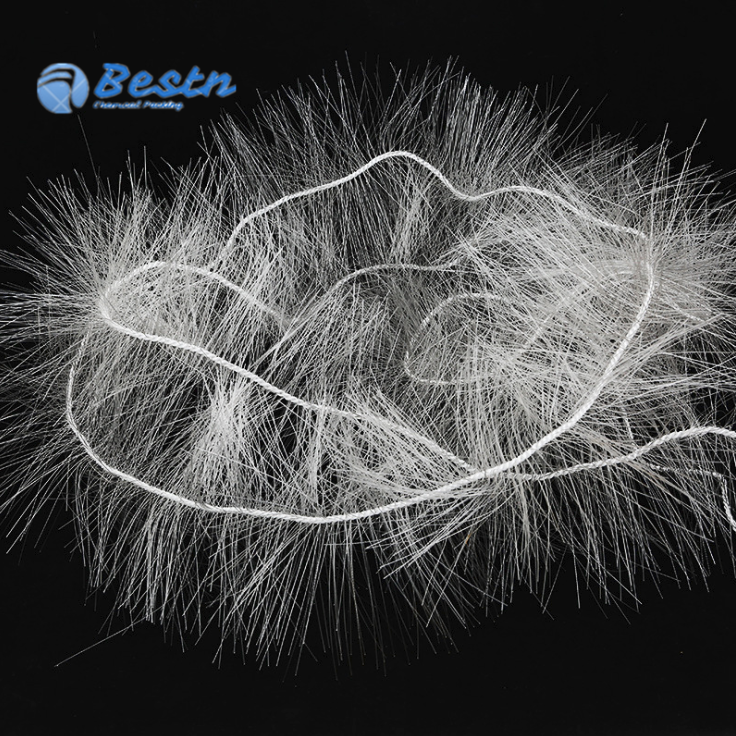

Elastic solid packing can make the waste water, air and biofilm be fully blended in contact exchange due to the Inter locking spiral mesh,The biofilm isn’t only fall evenly in the filament in large quantities and keep good activity,but also in the operation the gas is driven by three -dimensional flow of sewage, colliding with each other and being continuously cut by the spiral net to form microbubbles, that increase the utilization of oxygen and reduce the air.At the same time, the biofilm can have a good metabolism effect not adhesion.


Layers Puzzle Type Parking Equipment
•Strong bubble cutting ability
•Large space volume utilization
•Non blind-area

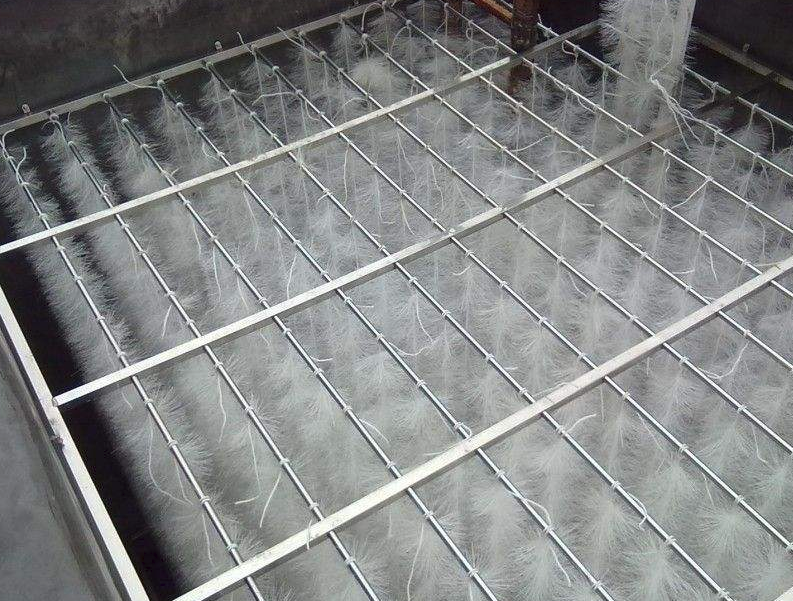

•Easy to assemble, no need to use rope network to intercept and divide the pool body, just need fix the up and down grille.
•High radiating performance, small resistance, good performance of water, gas distribution, easy long film.
Specification
Size(mm)
Length(m/m3)
Weight (kgs/m3)
Film forming weight(kgs/m3)
Specific surface area (m2/m3)
Wire diameter
(mm)
Dia 150
44
2.0
69
310
0.45
Dia 160
39
1.9
66
280
0.45
Dia 180
30
1.8
62
265
0.45
Dia  200
25
1.7
60
250
0.45
Applicatiom
1.Dealing with living sewage of low concentration
2.printing and dyeing liquid water of mid-concentration
3.oiled waste wate
