Plastic hollow ball

Model Number:BS-PHB

Place of Origin:Pingxiang,China

Keywords:Plastic hollow ball , roll on ball , shade ball

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 jenny@bestpacking.cn

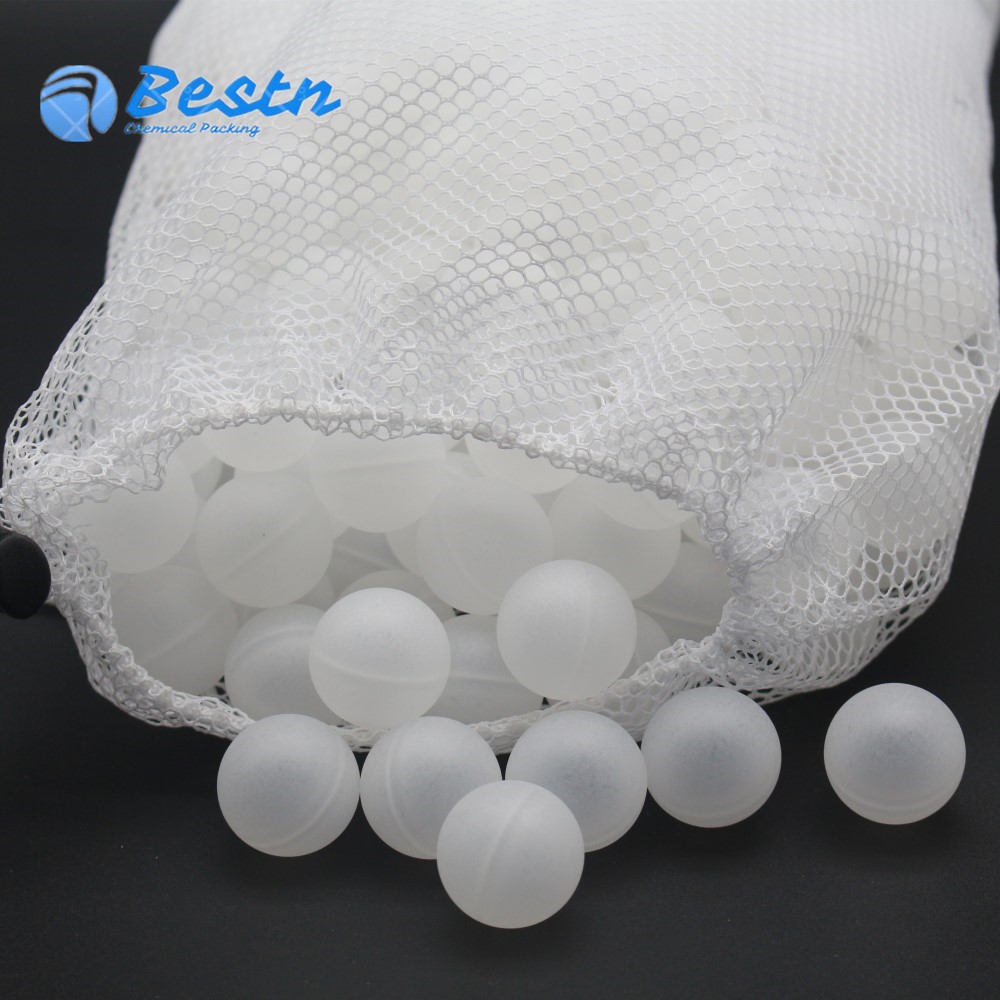

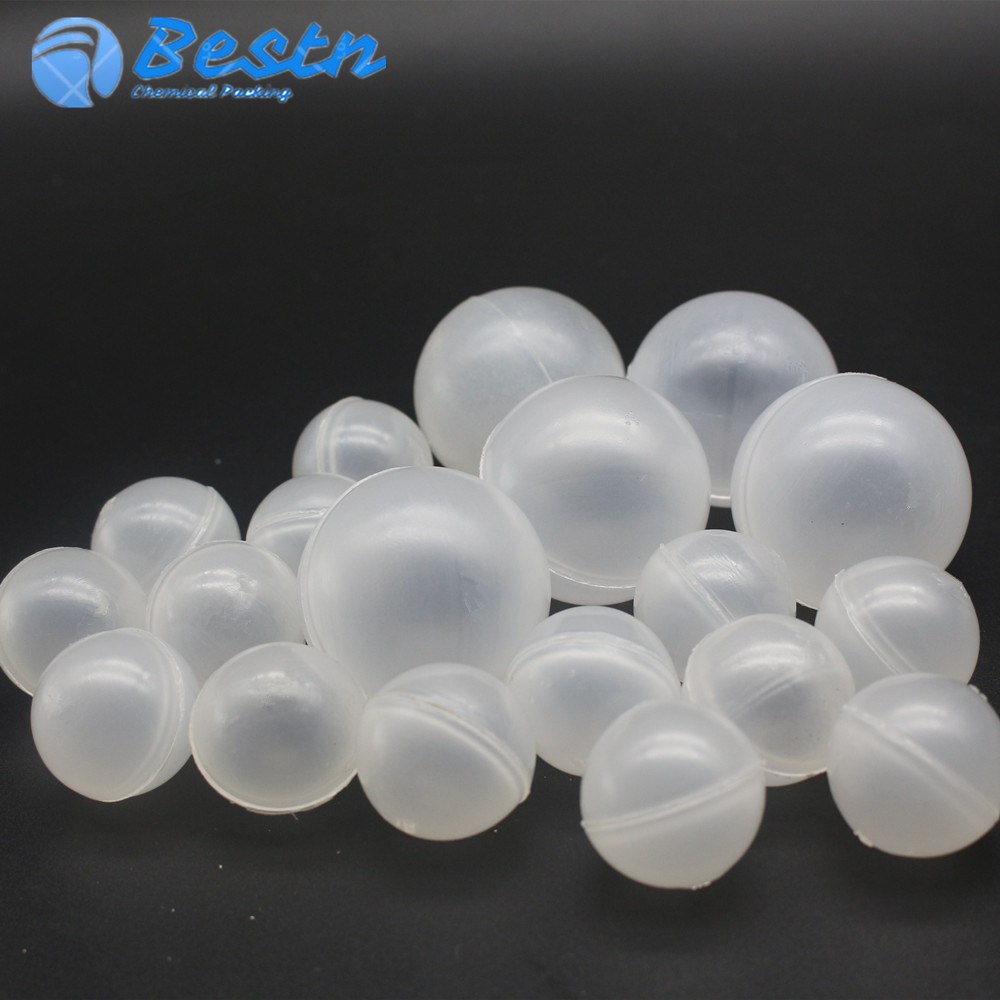

Plastic Hollow Floatation Ball Packing


Plastic Hollow Floatation Ball Packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60 Degree C to 150 Degree C. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.

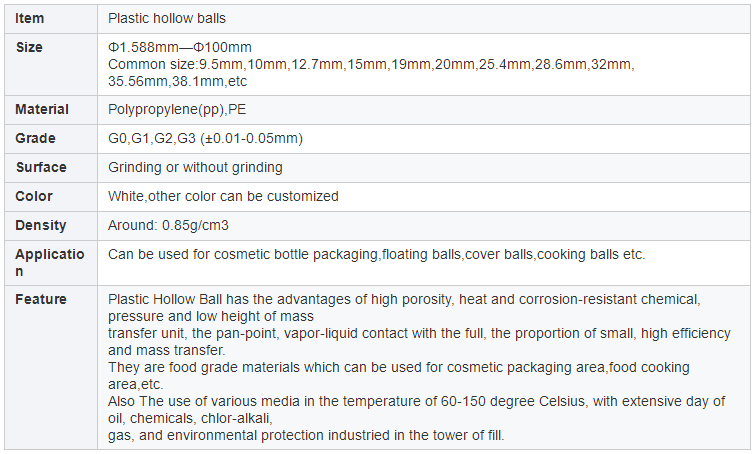

Product specification

Specification (mm)

Surface area (m2/m3)

Free volume (%)

Bulk density (kg/m3)

Number per m3

25*1.0

200

40

125

41500

38*1.2

150

40

121

22000

50*1.5

120

40

73

10480


Roll On Ball


Shade Ball:

Plastic shade ball also named as sun protection hollow ball which made by new HDPE material, life time is more than 15 years. It has stable chemical properties with UV Resistant, non-pollution and great overlay area. The products are widely used in coagulate water tank,salt eliminating water tank and water treatment field. It greatly reduced the heat loss,acid and carbon dioxide from the air and oxygen in water pollution, thus protect the operator and maintain the water quality.

Meanwhile ,it saves more energy and reaches the environment purification effect.


Specification:

Dimension(mm)

Piece Weightg)

Packing Number(pieces/Ft2)

Packing Number(pieces/m2)

25

1.5

172

1850

38

4.5

74

800

45

7

53

570

50

8

43

465

55

10.5

35

380

70

16

22

235

80

25

17

181

100

40

10

116

150

100

4.8

51.5



Advantages:

1. Cover the sun shining into the water to prevent and reduce the water evaporation.

2. Reduce heat loss in the heated tank, which to reduce he rnergy cost and improves process efficiency.

3. Reduce water treatment chemical use, block birds from water and reduce ordor.

4.Cover water and which deters waterfowls from entering the resevoir and nesting in the water or oyher fluid.


Application:

1.Mainly used the water & water treatment and also agriculture and livestock.

2.Oil & gas / Fracking and mining .
