Wood Stove Catalytic Converter Honeycomb Ceramic for Fireplace

< >

Model Number：BS-WSCC

Place of Origin：Pingxiang,China

Keywords：Wood stove catalytic converter,honeycomb ceramic,catalytic combustor

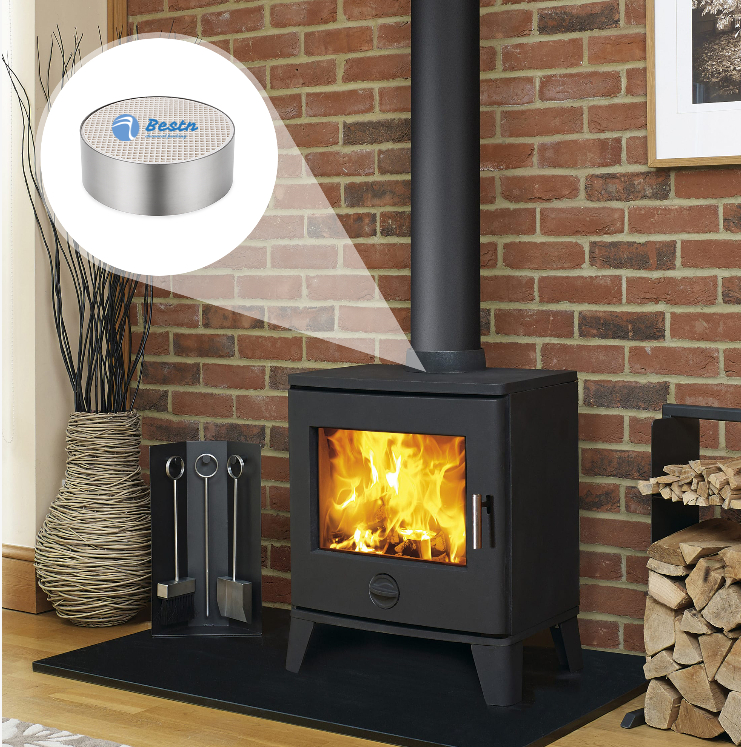

Wood stove catalytic converter is used in fireplace and wood stove.It can lock the heat and reduce CO emission.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 jenny@bestpacking.cn

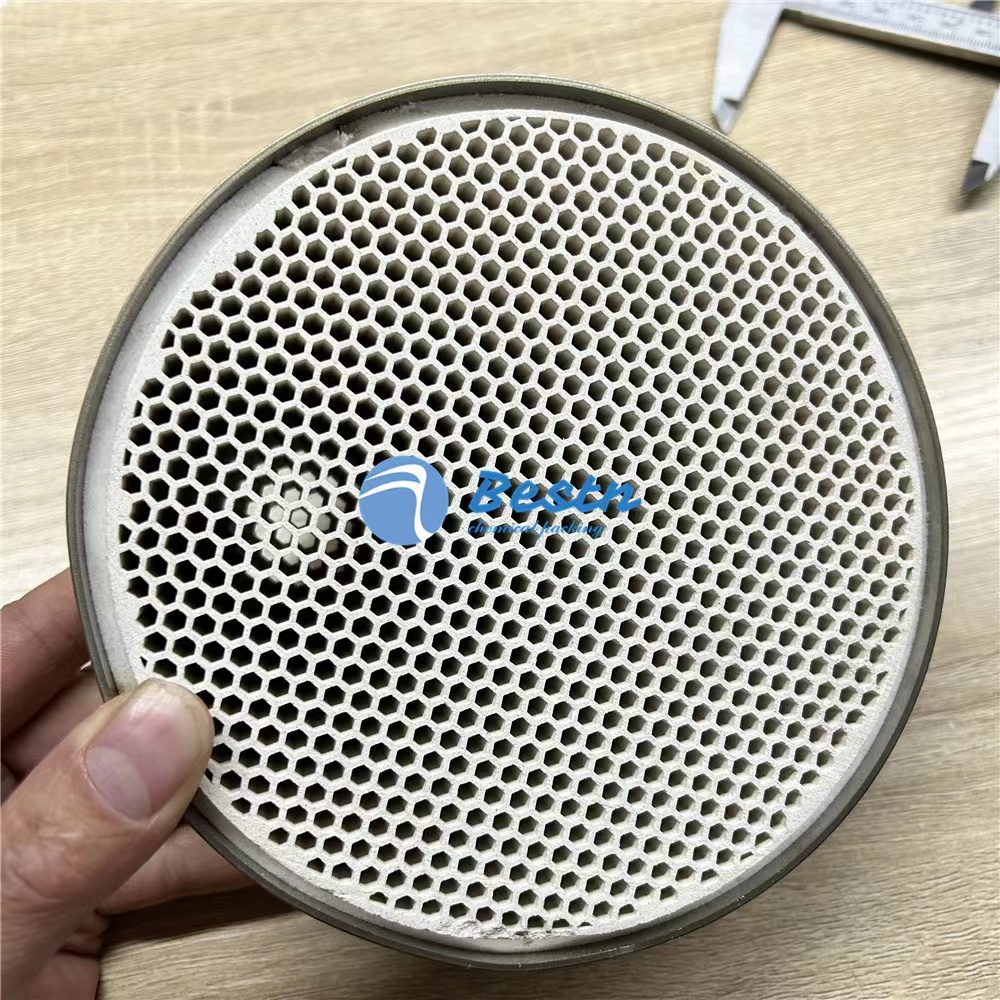

Wood stove converter generally use mullite honeycomb ceramics and stainless steel material as the shell. Due to its good heat resistance and high temperature resistance, it can be used for wooden stove and fireplaces. The honeycomb shaped pore size can filter some impurities and can be used for smoke exhaust port filtration.

It has two types,without coated and coated with precious metal.Without coated wood stove converter can used in the common fireplace,it can help to thermal storage and filter some smoke and dust. If it is necessary to reduce CO emissions,coatings can be customized according to the application environment, it can lock the heat and reduce con-sumption.

Specification

Item	Data
Structure	Honeycomb Ceramic+Stainless steel Shell
Carrier material	Mullite/Corderite honeycomb substrate
Honeycomb density	100, 200, 300, 400 or 600 CPSI
Active components	Pt and so on.

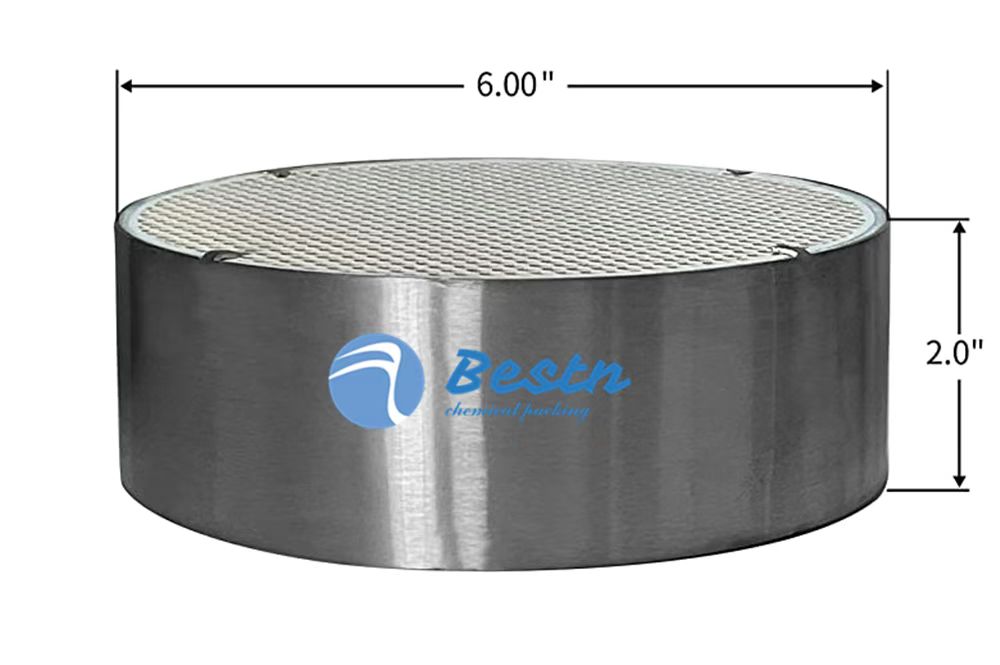

Size	Dia152×50mm,148x50mm,145x50mm,114x50mm or customized
Light-off temperature	200-250°C
Optimal use temperature	250-400°C
Co outlet concentration	≤4mg/m3(Just to refer to,it depends on the application)

Features

1. Low combustion temperature, flameless combustion and heat locking.

2. Fast combustion, complete combustion, and reduced fuel use.

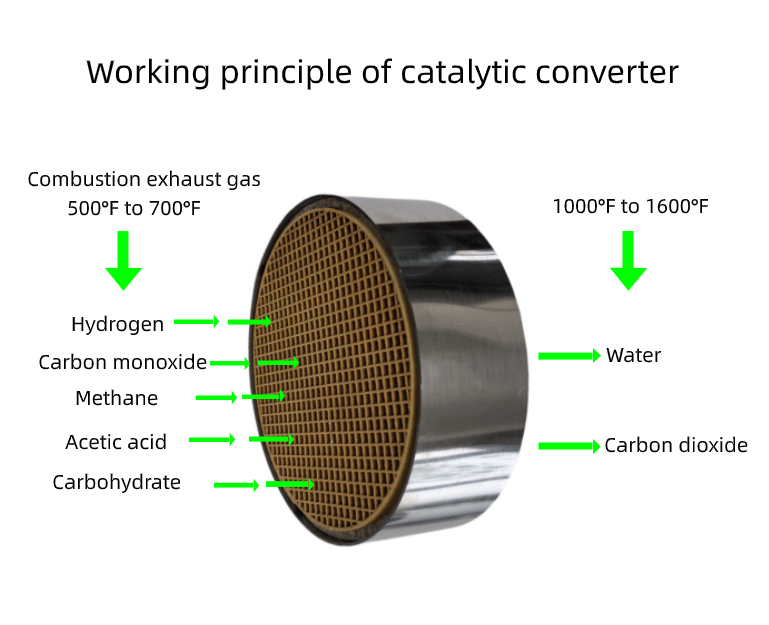

3. The combustion products are harmless CO2 and H2O and do not produce secondary pollutants.

4. Wide scope of application
