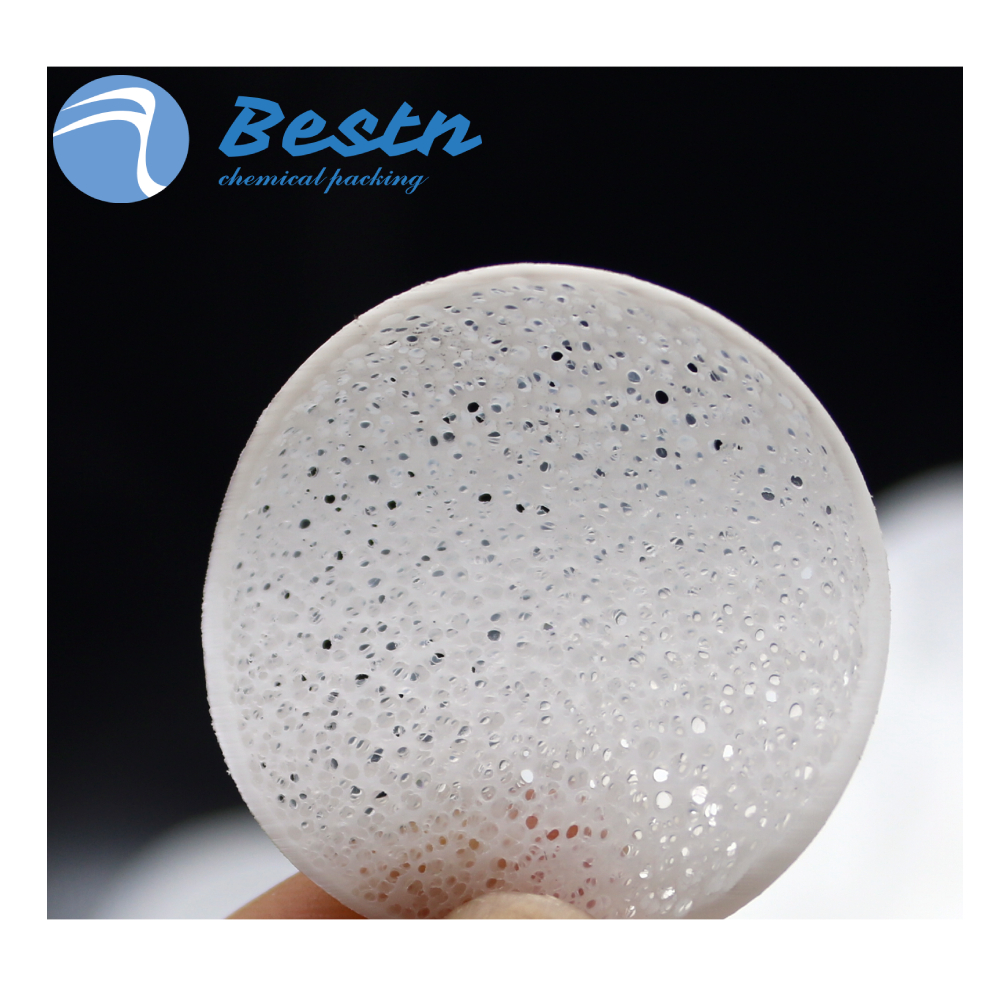

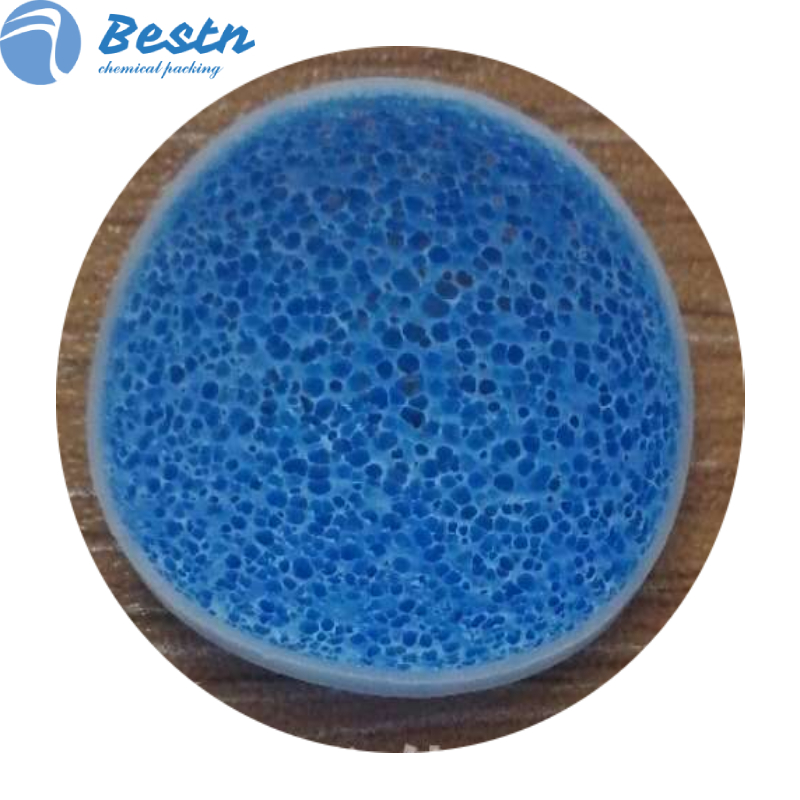

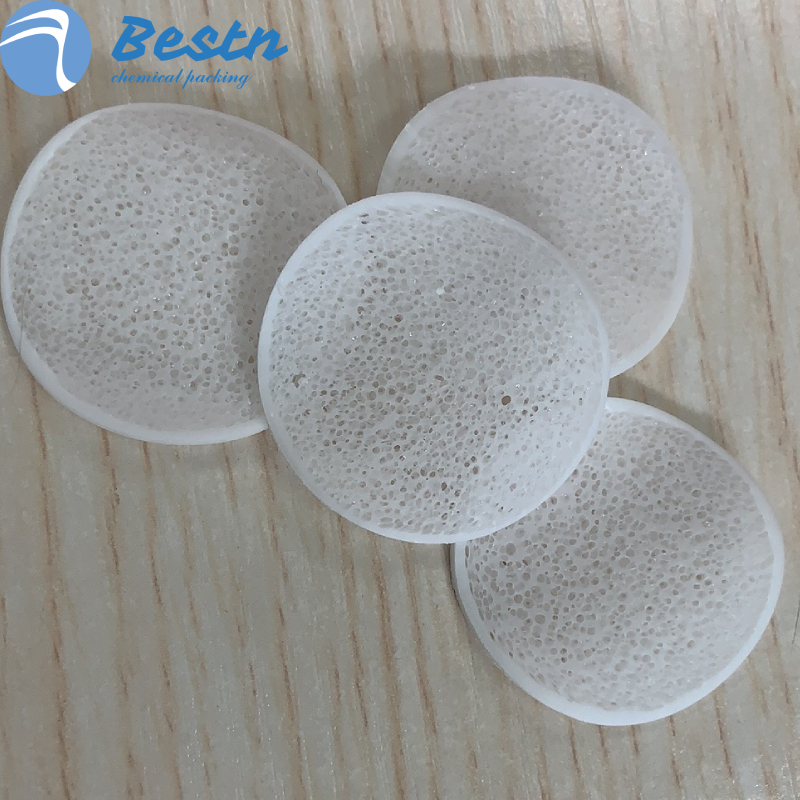

MBBR Bio Chip Media

Model Number:BS-BC

Place of Origin:Pingxiang,China

Keywords:Bio chip media, mbbr filter media,mutag biochip 30

Mbbr bio chip media is a high-performance biological packing material used in moving bed biofilm reactor (MBBR) systems, with an active specific surface area greater than 5500m2/m3, widely used in wastewater treatment and aquaculture.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 jenny@bestpacking.cn

MBBR biochip is a high performance MBBR carrier that provides a protected active surface area of > 5,500 m2/m3 for the immobilization of microorganisms which are in charge of the different biological water treatment processes. This active surface
area has been scientifically certified and compares to a range of 350 m2/m3 – 800 m2/m3 provided by competitive solutions. Its application is characterized by extremely high removal rates and reliable process stability. Our Eco Chips provide removal rates

up to 10 times higher than conventional media carriers (in all their various forms). This is achieved through a high-quality pore system as shown under magnification to the right.


Specificaion

Product Name

Mbbr biochip

Material

HDPE(New material)

Size

30*1mm

Surface area

>5500m2/m3

Life span

>15years

Packing numbers

340000pcs/m3

Bio-film formation Duration (Days)

5-15days

Nitrification Efficiency

500-1400

Preferential Temperature (ºC)

<65


Advantage

1. Economic and environmental protection: 100% high-quality pure polyethylene, environmentally friendly and harmless.

2. High specific surface area: A surface area greater than 5500m2/m3 provides the maximum surface area for beneficial bacterial colonization and growth.

3. Self cleaning ability: Its design allows for the generation of shear forces between fillers, thereby achieving self-cleaning and preventing blockages.

4. Good wear resistance and impact resistance: Made of high-quality native polyethylene (PE) material, it has good wear resistance and impact resistance .

5. Energy efficiency: Due to its density close to water, it can maintain a suspended state with low energy consumption .

6. Strong adaptability: Suitable for aerobic, anaerobic, and anoxic processes, it can effectively carry out biological treatment processes such as nitrification, denitrification, and anaerobic ammonia oxidation 7. Long service life: This material is wear-resistant and can be used for more than 15 years.


Application


  1. Municipal sewage treatment: widely used in municipal sewage treatment plants for removing COD, BOD, and conducting nitrification and denitrification treatment.
  2. Industrial wastewater treatment: suitable for treating various industrial wastewater, such as wastewater from food processing, papermaking, chemical and other industries.
  3. Circulating aquaculture system: used for water purification in aquaculture systems, removing organic matter and pollutants such as nitrogen and phosphorus from water
