Activated alumina ball

Model Number：BS-AAB

Place of Origin：Pingxiang,China

Keywords：Activated alumina ball,alumina ceramic ball

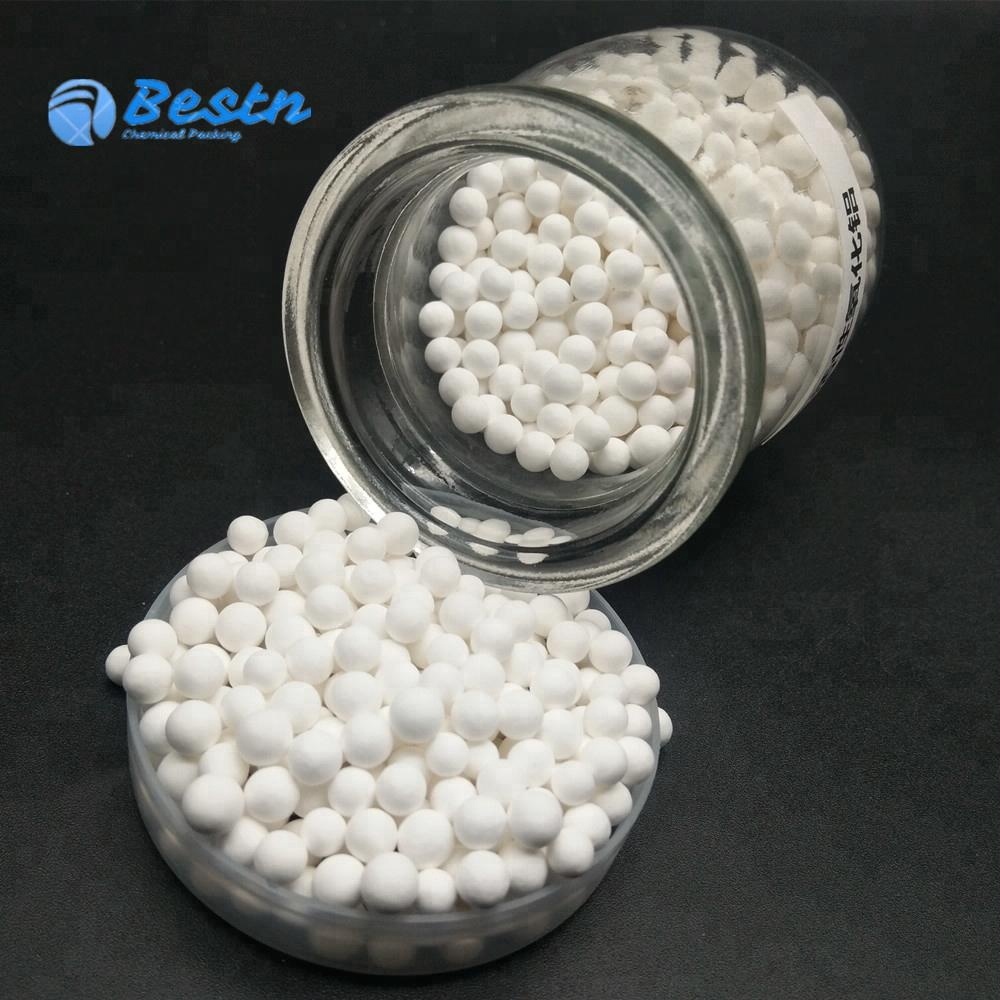

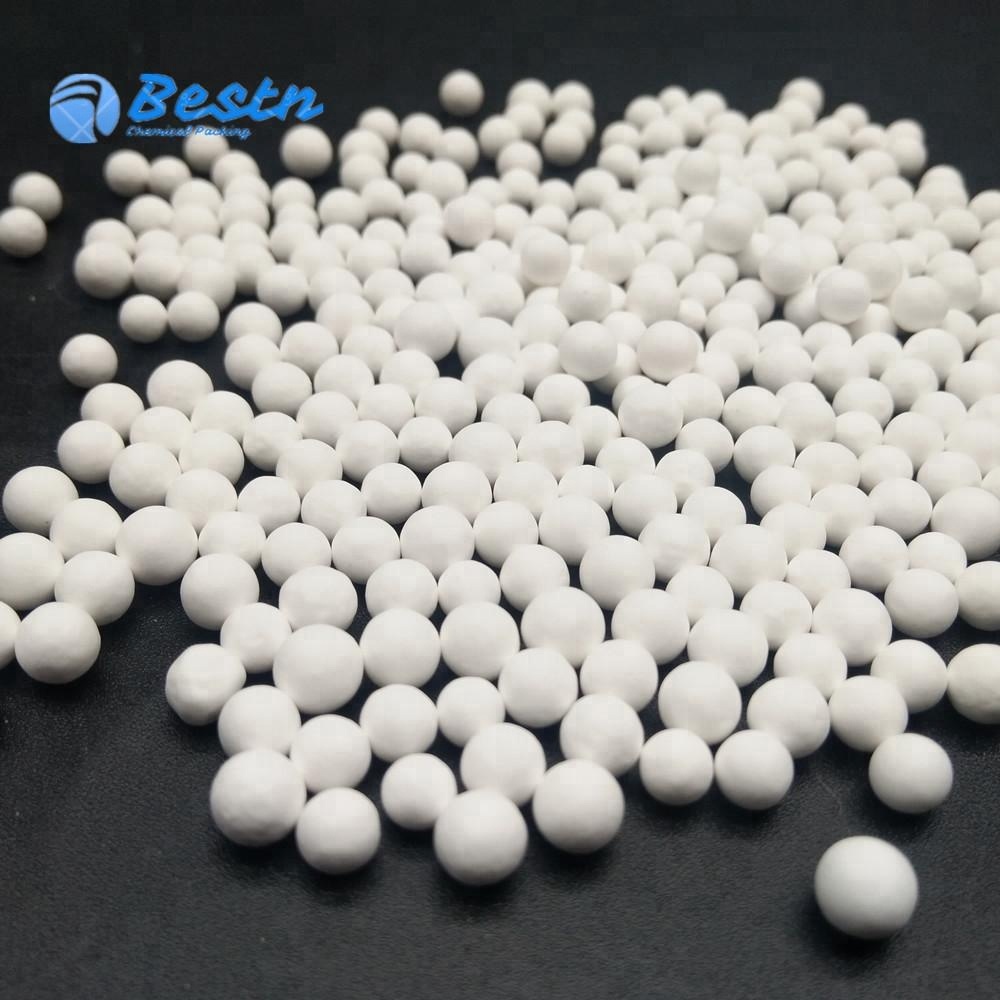

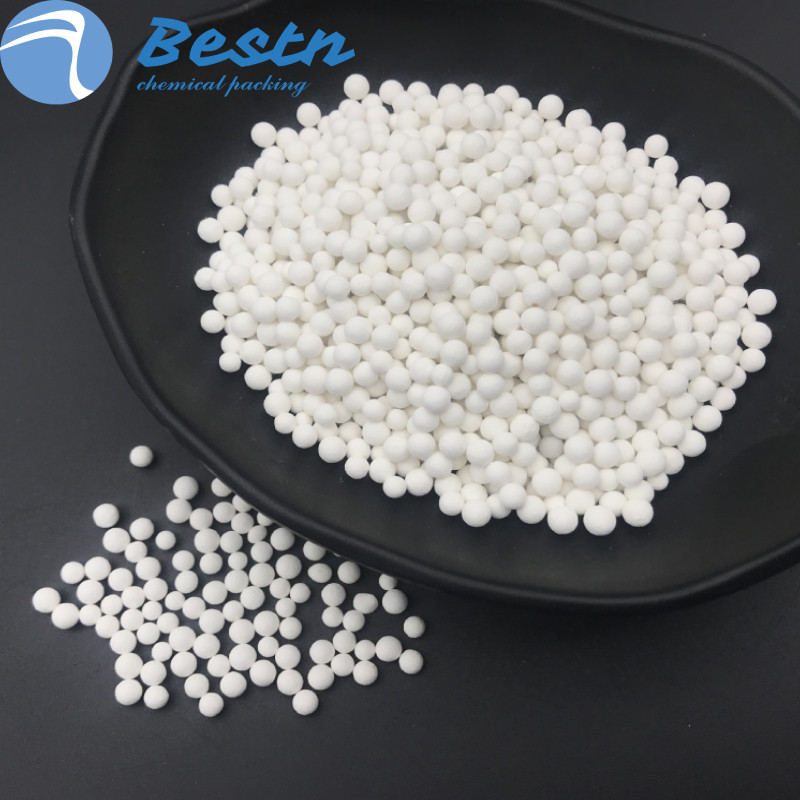

Activated alumina balls are highly porous ceramic spheres made from aluminum oxide (Al2O3) with a large surface area and high porosity.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 jenny@bestpacking.cn

Activated alumina ball is highly porous ceramic spheres made from aluminum oxide (Al2O3) with a large surface area and high porosity. It is widely used as desiccants, adsorbents, and catalysts in various industrial applications.

Specification

		K401	K402	K403	K404	K405
Application		Gas, fluid Drying	Fluoride Removal	H2O2 Production	Catalyst Carrier	Air Dryer
Appearance		White sphere, Insoluble in water, Innocuous
Crystal Type		x-p	x-p	y	y	x-p
Composition (%)	Al2O3	≥93.5	≥93.5	≥93.5	≥93.5	≥93.5
	Na2O	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3
	Fe2O3	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2
	SiO2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2
LOI (%)		4-7	4-7	4-7	4-7	4-7
Bulk Density (g/ml)		0.68~0.72	0.70~0.75	0.70~0.80	0.50-0.70	0.68-0.75
Surface Area (m2/m3)		>300	>300	250-280	>380	>350
Pore Volume (ml/g)		0.45-0.50	0.45-0.50	0.45-0.50	0.45-0.50	0.45-0.50
Water Adsorption %		17-20	Fluoride 2.5-4	-	-	17-20
Active (%)		--	--	56~62	--	--
Attrition Loss		≤1.0	≤1.0	≤1.0	≤0.4	≤0.8
Crushing Strength (N/pc)	1-3mm	≥50	≥50	≥50	≥50	≥50
	3-5mm	≥150	--	≥150	≥150	≥150
	4-6mm	≥180	--	≥180	≥180	≥180
	5-7mm	≥250	--	≥250	≥250	≥250
	6-8mm	≥300	--	--	≥300	≥300
	8-10mm	≥450	--	--	≥450	≥450
	12-14mm	≥500	--	--	≥500	≥500

Features

High Adsorption Capacity: Activated alumina balls have a large surface area (up to 415 m²/g), which allows them to effectively adsorb moisture and other impurities from gases and liquids.
Thermal Stability: They are resistant to thermal shock and can withstand high temperatures without degrading.
Mechanical Strength: These balls have high crush strength, which prevents them from breaking down during use, ensuring long-term performance.
Chemical Inertness: They are non-toxic, non-flammable, and non-reactive, making them safe for use in a variety of applications.
No Swelling or Shrinking: When immersed in water, activated alumina balls do not swell, shrink, or soften, maintaining their structural integrity.

Application

Air Drying: Used in air drying systems to remove moisture, providing dry air with dew points as low as -47°C to -50°C.
Gas Drying: Effective in drying various gases such as LPG, propylene, aromatic solvents, and gasoline.
Water Treatment: Used to remove fluoride and other impurities from drinking water, making it suitable for defluorination treatment in high-fluorine areas.
Catalyst Support: Serve as catalyst supports in the production of hydrogen peroxide and the purification of hydrocarbons.
Pollutant Removal: Can absorb pollutants such as H2S, SO2, HF, and water vapor from industrial gases and wastewaters
