PVC steel sheet pile

Model Number:BS-SSP

Place of Origin:China

Keywords:pvc steel sheet, sheet for Water Infrastructure

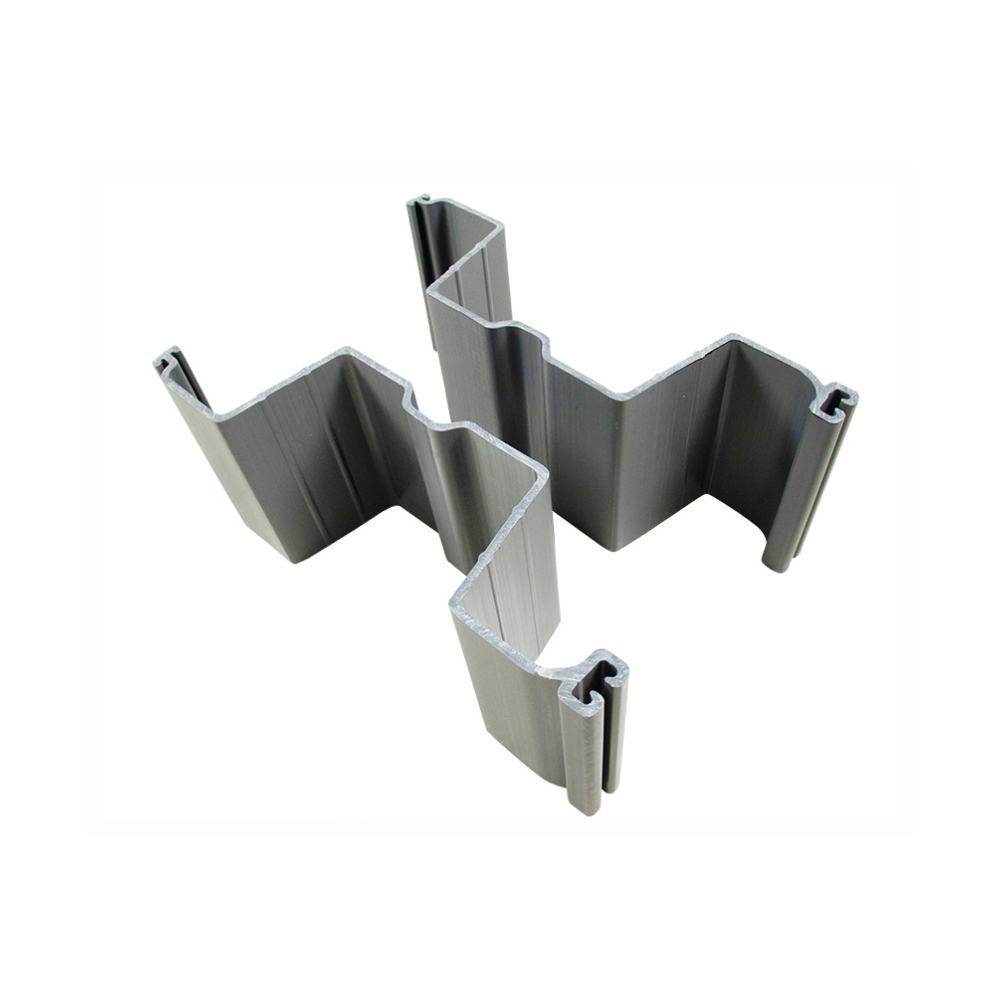

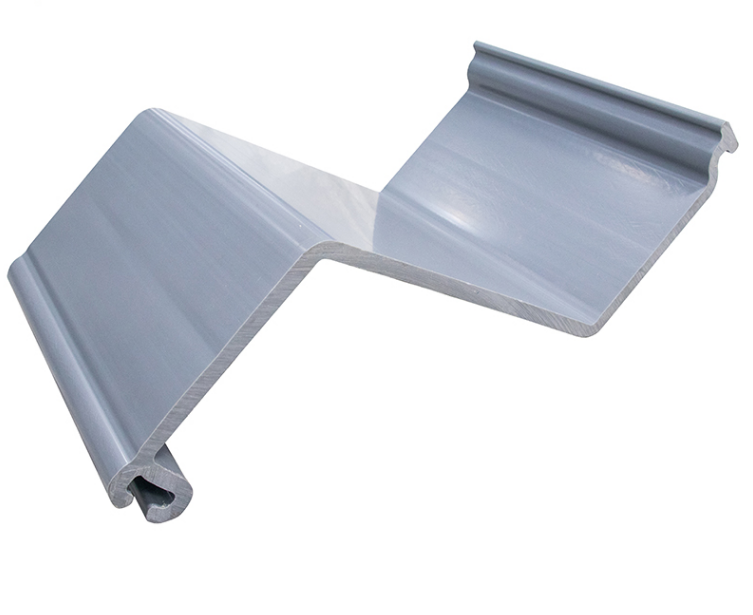

PVC plastic steel sheet pile (also known as PVC composite sheet pile, vinyl sheet pile/PVC Plastic Steel Composite Sheet Pile, also known as Vinyl Sheet Pile) It is a new type of interlocking retaining and waterproofing engineering profile extruded from modified rigid PVC polymer.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 jenny@bestpacking.cn

PVC sheet piles are made of rigid polyvinyl chloride with added processing-enhancing, impact-modifying materials, heat and UV stabilizers, and mineral fillers.

Specification

Product Name
PVC sheet pile Plastic sheet pile
Material
PVC
Width
457 mm or Customization
Section depth
254 mm or Customization
Length
Customization
Thickness
11.18mm or Customization
Color
Grey/customization
Weight
11.5±1 kg/m
Moment of inertia
20438 cm4/m
Section modulus
1546cm3/m
Ultimate moment
7153 kg-m/m
Tensile Strength
40.35 Mpa
Flexural Strength
70.5 Mpa
Modulus of Elasticity
2358 Mpa
Notched Izod impact
2.22 Kg/cm
Heat Deflection Temperature
63ºC

Features & Advantage

1.Portable and simple, it can be installed quickly with standard tools and mechanical equipment
2. Low cost - compared with the traditional steel sheet pile construction cost, it can save more than 30%
3. Minimized maintenance work - the complete bearing of plastic sheet piles is as follows: ·
The marine environment : Cracks · Biocorrosion ·Wear,· Rust · Scratch
4. Extreme persistence, durability and special mechanical parameters
5. Ecology - The raw materials of plastic sheet piles can be obtained from the PVC recycling process and can be recycled
6. The locking link is located on the side, away from the maximum load area
7. Clean and beautiful appearance
8. The uniquely designed vinyl plank pile plane is easier to install than other such solutions
9. Simple curvature formation due to special design (together with natural embankment linen)

Application

微信图片_20240124144718_副本

1.River weir pond agricultural river sewage treatment

2.Embankment management and flood control

3.Rivers, ocean revetments

4.Landscape revetment

5.Soil landslide protection

6.Embankment construction
