PP Tellerette Ring
Model Number： BS-PTR
Place of Origin：Pingxiang ,China
Keywords：PP Tellerette Ring ,Plastic Tellerette Ring ,Tellerette 3K, 2R Packing， 2K, 3K, 2K, 3R as Scrubber Packing

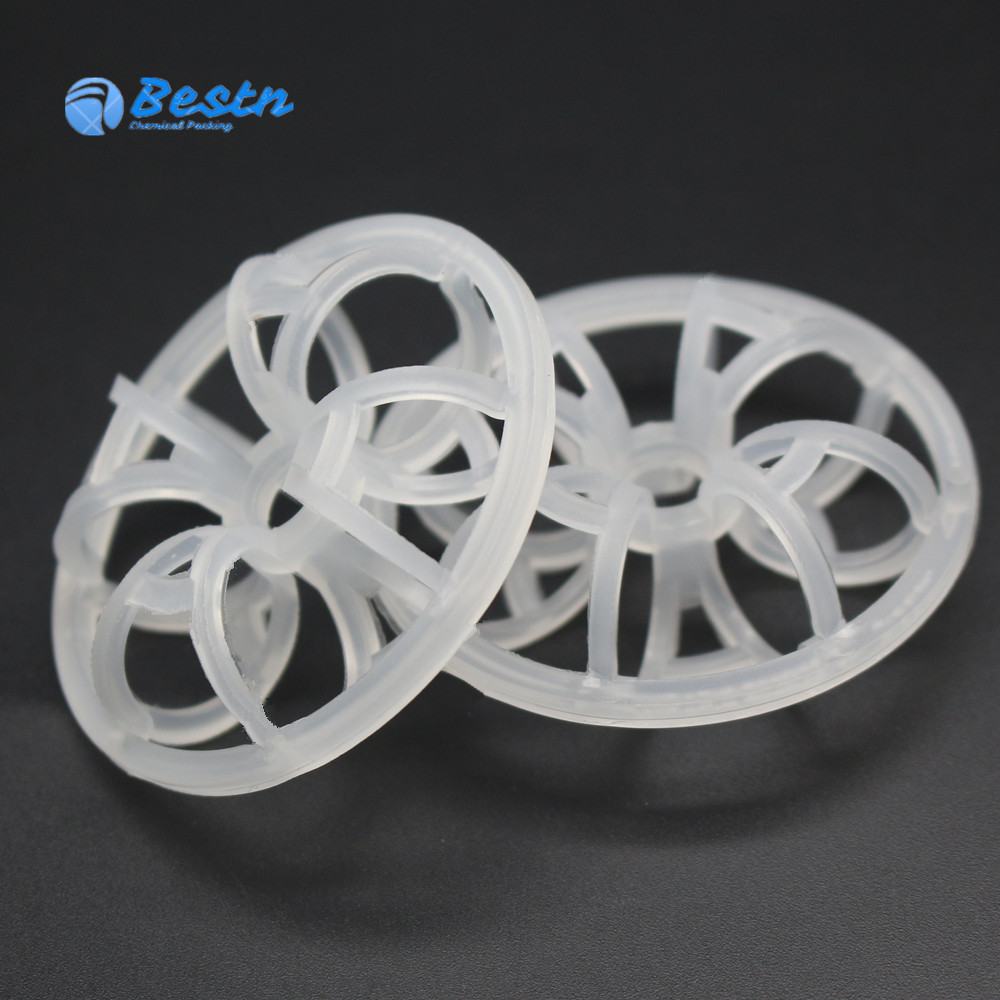

Plastic Tellerette Ring is also named Teller Ring or Telleresette Ring which is made up of radial arranged small rings. It is made from heat resistant and chemical corrosion resistant plastics, including polythylene(PE), polypropylene(PP), reinforced polypropylene(RPP), polyvinyl chloride(PVC), chloridized polyvinyl chloride(CPVC) and polyvinylidene fluoride(PVDF).
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
We have produced and sold successfully plastic packing TELLERETTE as used for gas scrubbing for over ten years.
As this packing has excellent features of mass and heat transfer efficiency for gas absorption, air conditioning, etc., it has been used as packing of high corrosion resistance and low pressure drop with extensive application for Gas Absorber, Cooling Tower, Deaerator, Reactor and other gas-liquid contact systems.
Various data on equilibrium, design and materials based on a long experience in using the packing are available on request.
Advantages:
1.High free volume, Low pressure drop
2.Low mass transfer unit height, High flooding poing
3.Uniform gas-liquid contact, Small specific gravity
4.High mass transfer efficiency
Applications:
The application temperature in media ranges from 60°Cto 150°C, It is widely used in packing towers in petroleum industry, chemcial industry, alkali-chloride industry, coal gas industry and environmental protecion,etc.
1.H2SO4/Ammonium sulfate indusry: SO2, SO3, NH3, Absorber, Scrubber
2.Soda Indusry: Chlorine drying tower
3.Iron & Steel/Coke Industry: COG desulfurization tower, COG middle/light oil collector, Gas cooling tower
4.Oxygen Plant: Air cooling
5.Thermal Power: Flue gas desulfurization
6.Chemical Industry: H2S, HCI, CL2, HF, NOx elimination, Organic solvents recovery
7.Pulp Industry: Black/white liquor oxidation
8.Water Purification: Ammonium, Trihalomethane, Trichloroethylene stripping
9.Sewage Treatment: Deodorization
Technical Data:
Normal Packing Size
Maximum Dimensions O.D.
Loop Height
Free Volume (%)
Surface (Ft2/Ft3)
Average Packing Factor
No. 1-Type R
1.81"
0.75"
87
55
36
No. 2-Type R
2.75"
1.00"
93
38
18
No. 3-Type R
3.75"
1.50"
92
30
16
No. 2-Type K
3.25"
1.25"
95
28
11
No. 3-Type K
4.125"
2.19"
96
22
9
|
Size (mm) |
Surface |
Free Vol. |
Number |
Weight |
|
m2/m3 |
% |
per m3 |
kg/m3 |
|
|
25*9*(1.5*2) (5 ring) |
195 |
82 |
170000 |
90 |
|
47*19*(3*3) (9 ring) |
185 |
88 |
32500 |
111 |
|
51*19*(3*3) (9 ring) |
180 |
98 |
23500 |
103 |
|
59*19*(3*3) (12 ring) |
150 |
92 |
17500 |
72 |
|
73*27.5*(3*4) (12 ring) |
127 |
89 |
8000 |
80 |
|
95*37*(3*6) (18 ring) |
94 |
90 |
3900 |
78 |
|
145*37(3*6) (20 ring) |
118 |
95 |
1100 |
48 |
|
Application |
Chemical industry, Petroleum industry, Alkali-Chloride industry, Coal gas industry and Environmental protection, etc. |
|||
