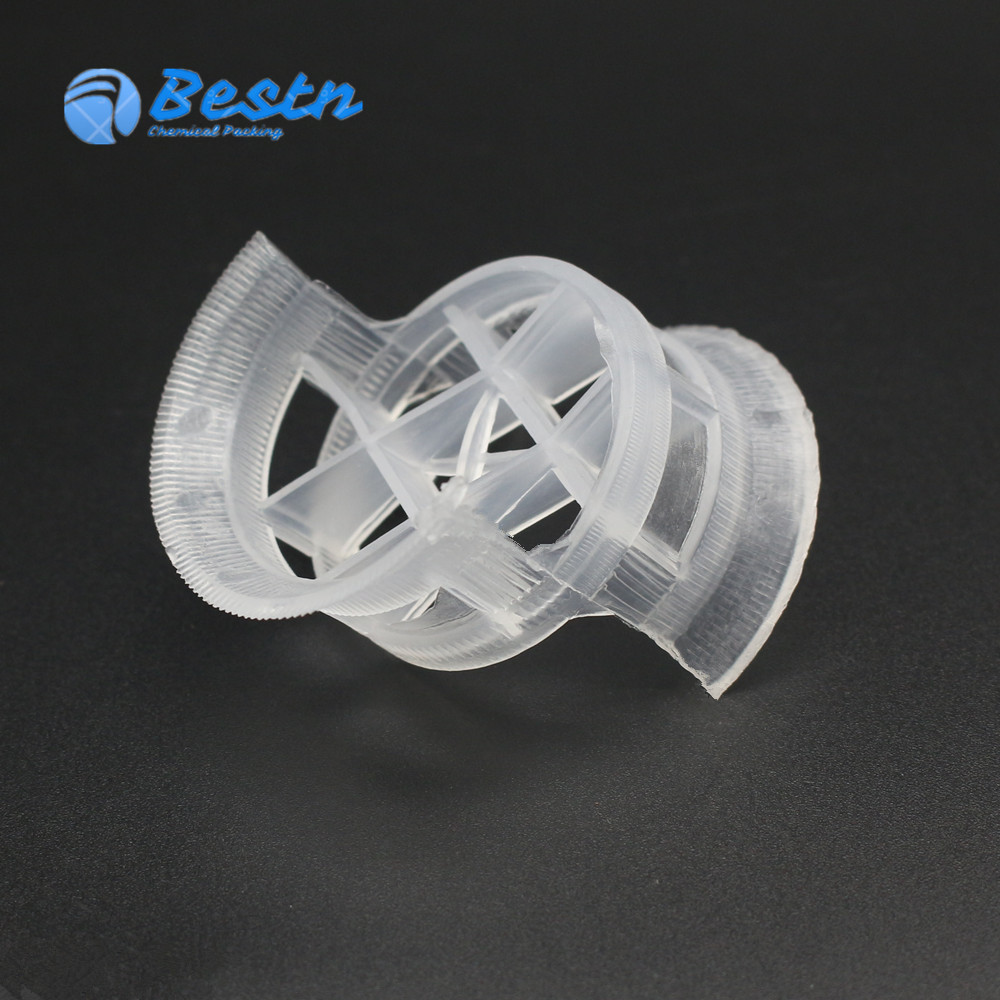

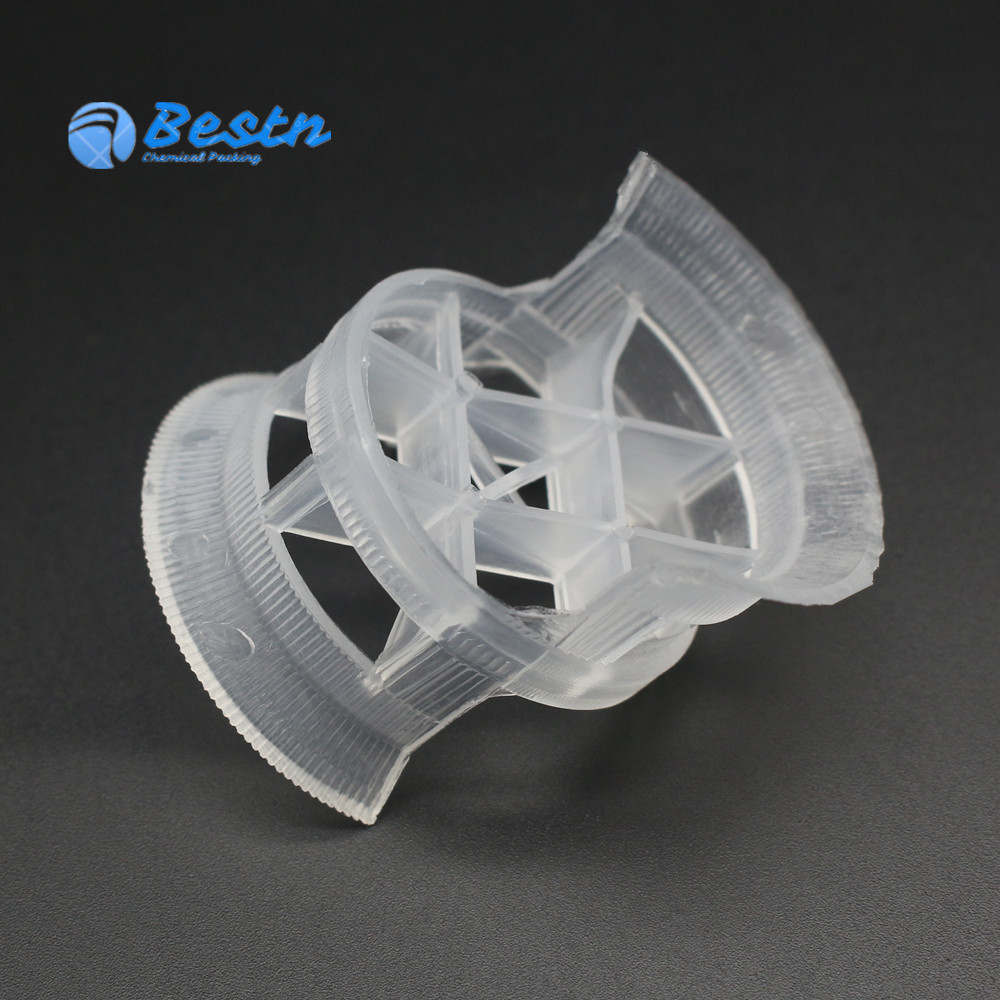

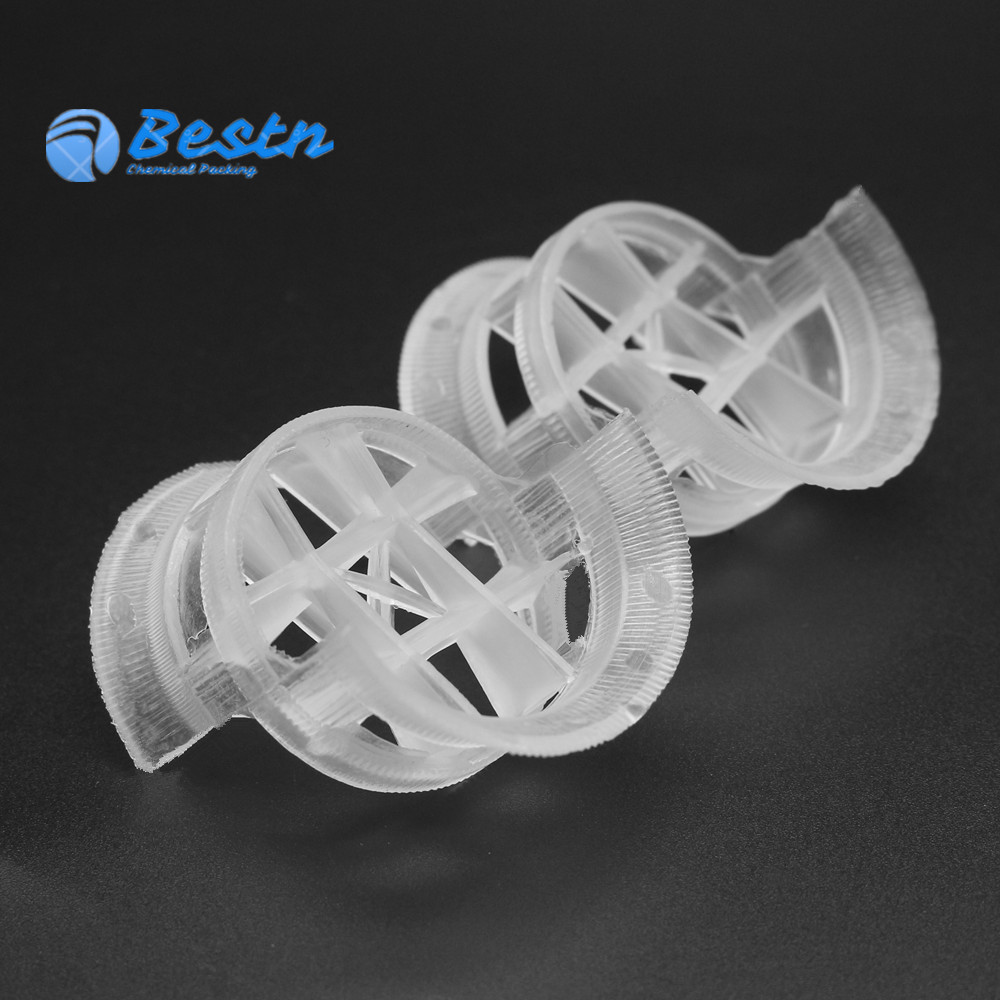

Plastic Conjugate Ring
Model Number：BS-PCR
Place of Origin：Pingxiang,china
Keywords：Plastic Conjugate Ring, conjugated ring, plastic random packing
Plastic conjugate ring is a kind of random packing further developed on the basis of Cascade Ring, combing advantage of both types random packing in the shape of ring and saddle. It is widely used in the packing towers, petroleum industry, chemical industry, alkali-chloride industry, coal gas industry and environmental protection etc.
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
The Plastic Conjugate Ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF).
|
Specification for conjugated ring |
|||||
|
Size (mm) |
Area (m2/m3) |
Void rate (%) |
Bulk number (Pieces /m3) |
Bulk weight (Kg/m3) |
Factor (m-1) |
|
25*25*1.0 |
185 |
95 |
74000 |
96 |
216 |
|
37*37*1.5 |
142 |
91 |
16320 |
57.7 |
188 |
|
50*40*1.5 |
104 |
80 |
9500 |
52 |
164 |
|
76*76*2.6 |
81 |
95 |
3980 |
64.8 |
94 |
|
100*100*2.0 |
55 |
96 |
1850 |
48 |
62 |
|
Feature: |
It draw benefits of ring and saddle packing .Owing to conjugate curve rib structure and appropriate length,there are point contact and aren't intussusceptive between packings and tower or packings It has better hydrodynamics and mass transfer performance. |
|
Application: |
Distillation, Gas absorption, Deabsorption system |
