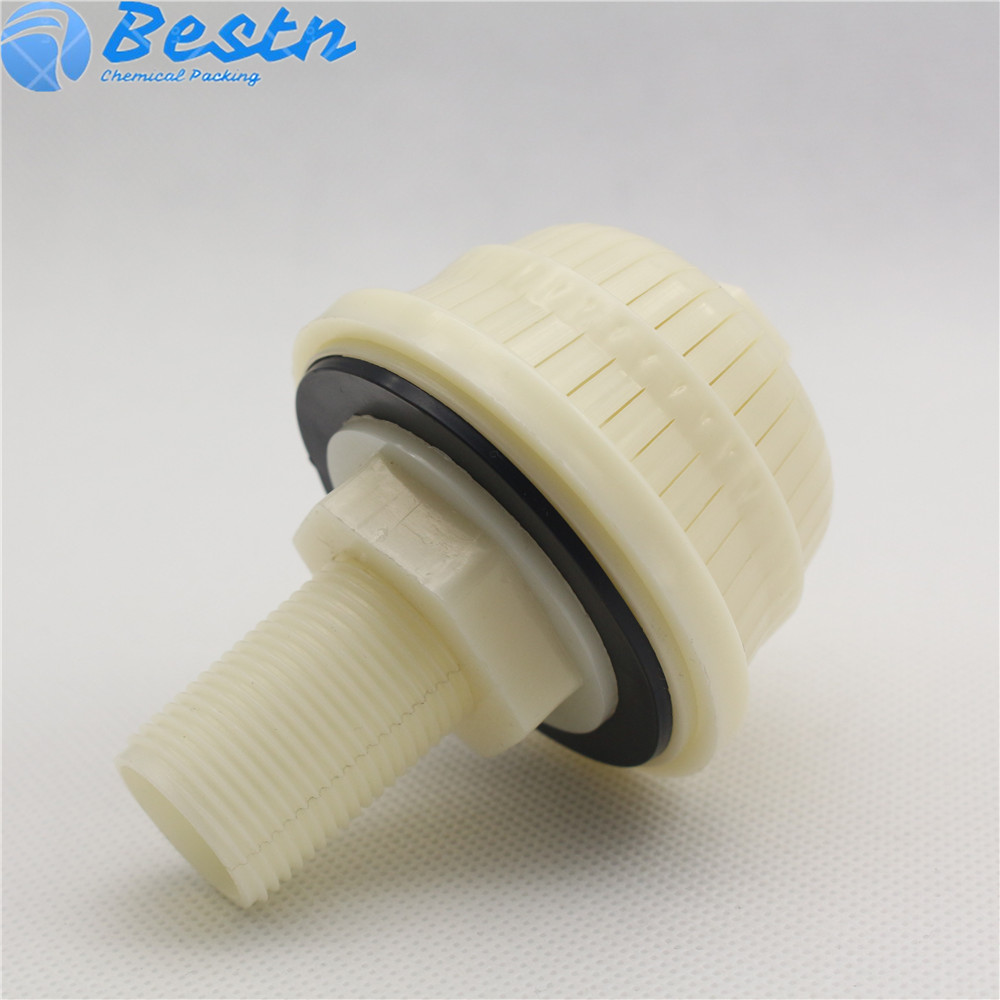

ABS filter nozzle
Model Number：BS-FN
Place of Origin：Pingxiang,China
Keywords：water filter nozzle, ABS nozzles, Abs filter nozzles

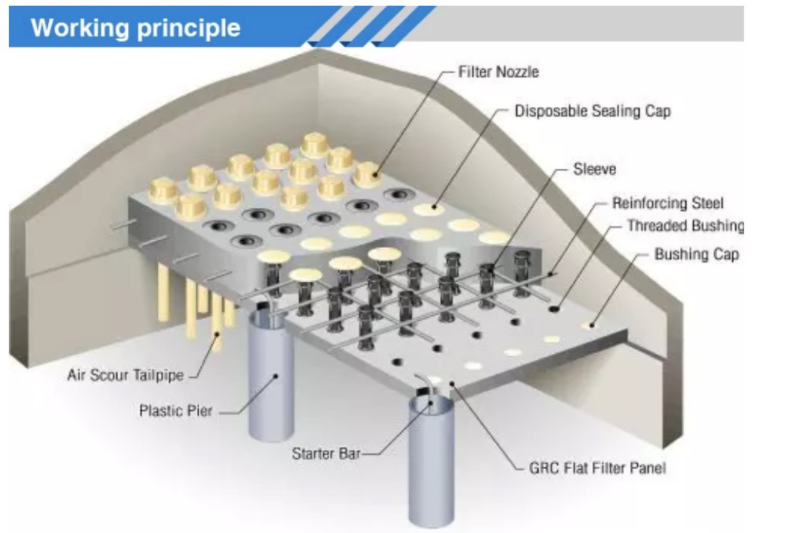

The filter nozzle is the water distribution system at the bottom of the filter tank, which can effectively flush out sludge and debris in the filter tank and ensure the water quality of the filter tank to run normally
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
Application:
The filter head filter cap is one of the relatively new equipment for backwashing water and air distribution of the filter tank.This material use ABS engineering plastics, strength, good durability, crack deformation, uniform distribution, reasonable layout, improved the hydraulic characteristics of the filter head, in order to reduce the loss of water head, flush the area no dead Angle, no mud, this device, gas water backwash effect is good, water saving, energy saving.
Product category:

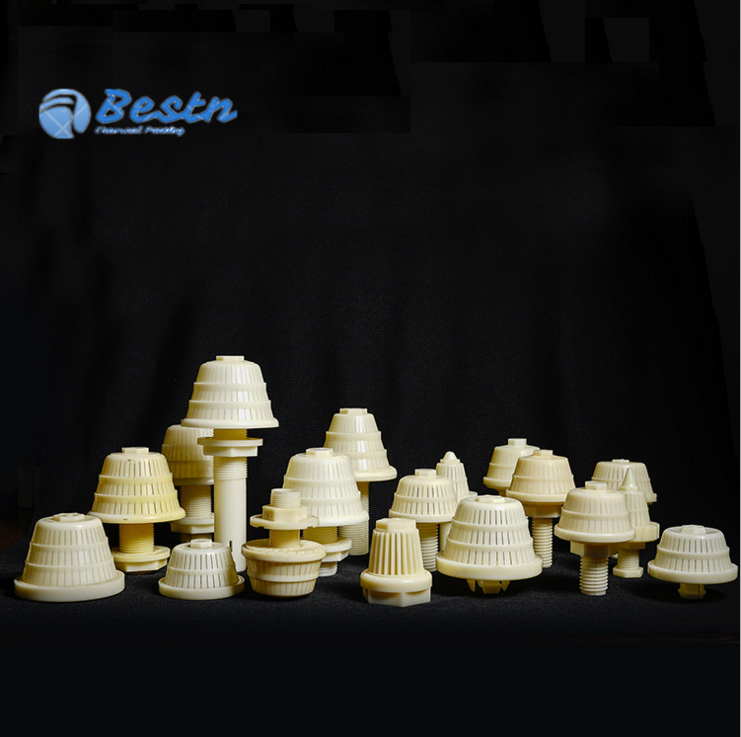

According to the flow rate, the filter cap can be divided into three types: 0.25t/h, 0.5t/h, 1t/h, long handle, medium handle and short handle.According to the shape can be divided into tower, semi-spherical shape, plum blossom shape, sheet shape, according to the interface, there are two kinds of outer wire, inner wire.
Name
Sewage Water Treatment Media Plastic Filter Nozzle Sand Filter Nozzle
Components
Stem,Dome,Snap ring and Socket
Material
ABS,PP, SS 316
Customized service
Available in variety of standard designs or can be custom to meet your demand
Type
Stem's diameter and height(not include in Domes)
Dome slot width
Snap ring's diameter
Stem thread
BSFN-1
29/240 mm
0.4 mm
No data
3 mm
BSFN-2
20/43 mm
0.3 mm
25 mm
1.5 mm
BSFN-3
32/50 mm
0.25 mm
60 mm
1.5 mm
BSFN-4
29/100 mm
0.4 mm
No data
3 mm
BSFN-5
25/48 mm
1 mm
45-46 mm
1.5 mm
BSFN-6
23/48 mm
0.25 mm
46 mm
2.5 mm
BSFN-7
25/48 mm
0.25 mm
45-46 mm
1.5 mm
BSFN-8
20/48 mm
0.25 mm
54-55 mm
1.5 mm
Application
Used in all filter and drainage systems and can be active in sand,anthracite,activated carbon,concrete and ion exchange resin treatment
Feature
1. Accurate dimensions 2.Corrosion-resistance 3.Sturdy design
Package
1. Inner layer:plastic bag
2.Middle layer:Expand aple poly ethylene
3.Outer layer:carton/composite wooden case.
Components function description
1.Dome slots:provide the controlling head loss for good distribution
2.Snap ring:to fix connecting position between filter nozzle and laterial piple or in the suspend floor
