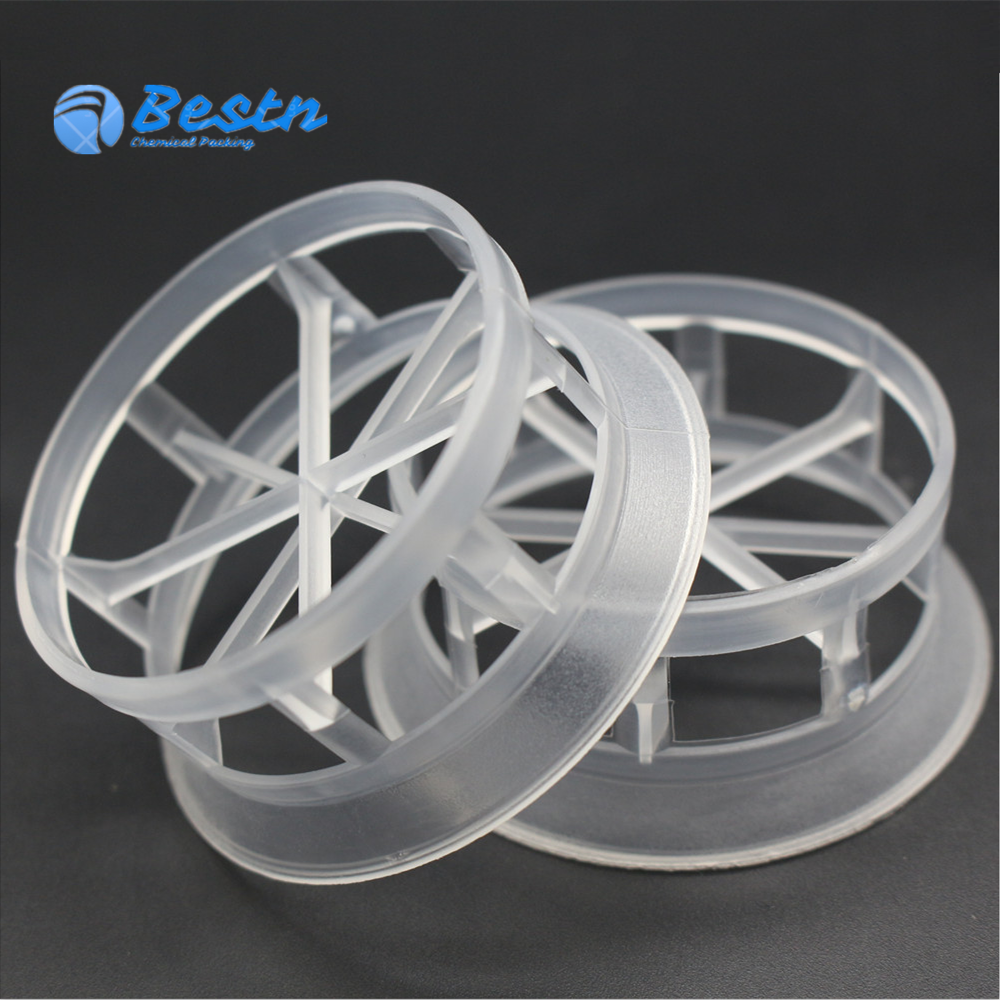

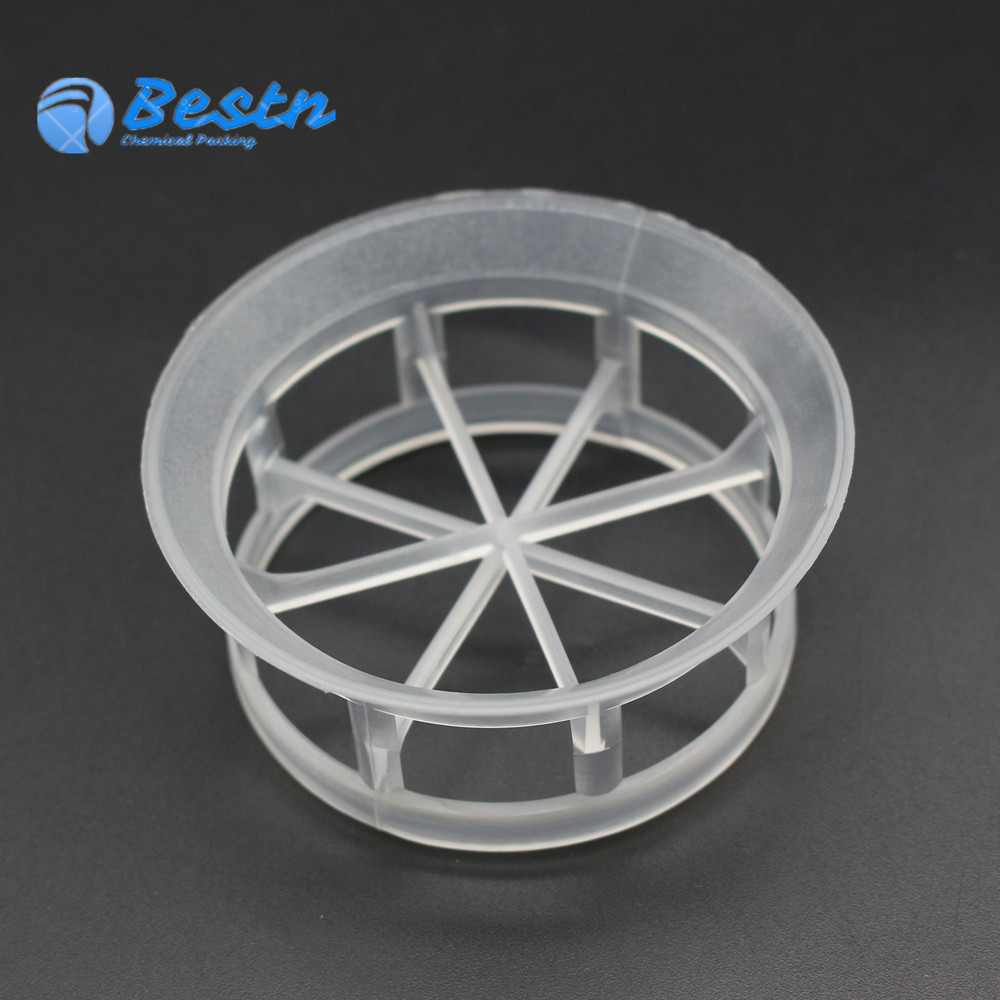

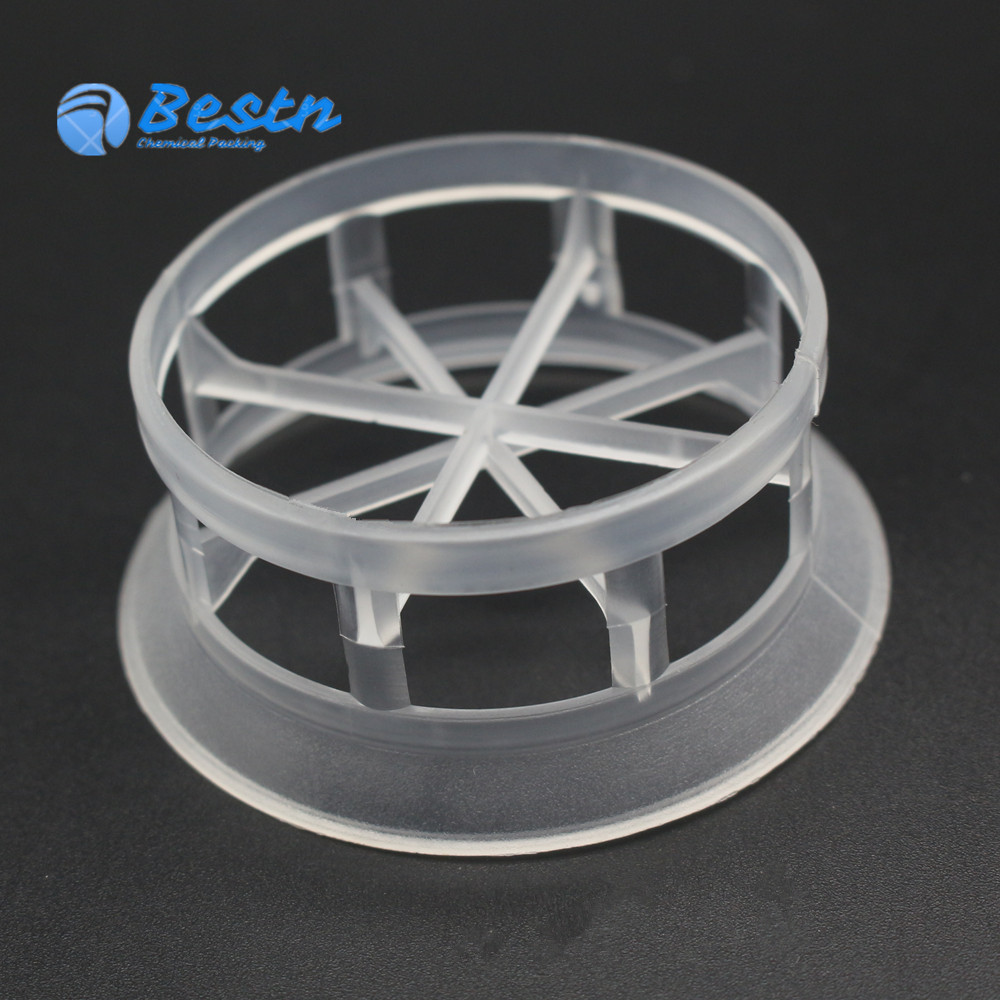

Plastic Cascade Ring
Model Number：BS-PCR
Place of Origin：Pingxiang.China
Keywords：Plastic Cascade Mini Ring，Plastic Cascade Ring， mini ring
Application: synthetic ammonia plant for decarburization desulphurization system, and any separation, such as crude oil separation, methanol separation, organic acid separation etc, and absorption tower and desorption towers.
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
Technical Data
Spec.
D*H*T (mm)
Number per m3
Bulk density (kg/m3)
Surface area (m2/m3)
Free volume (%)
F Factor (m-1)
Dg16
16*8.9*1.1
299136
135.6
370
85
602.6
Dg25
25*12.5*1.4
81500
97.8
228
90
312.8
Dg38
38*19*1
27200
57.5
132.5
91
175.8
Dg50
50*25*1.5
10740
54.8
114.2
92.7
143.1
Dg76
76*37*3
3420
68.4
90
92.9
112.3
